PermaCoat Powder Coated
Our pre-galvanized steel base material is subjected to an 11-stage process to prepare for a dual top-coat finish.
TransPort Traverse II
Improved Gate Hardware

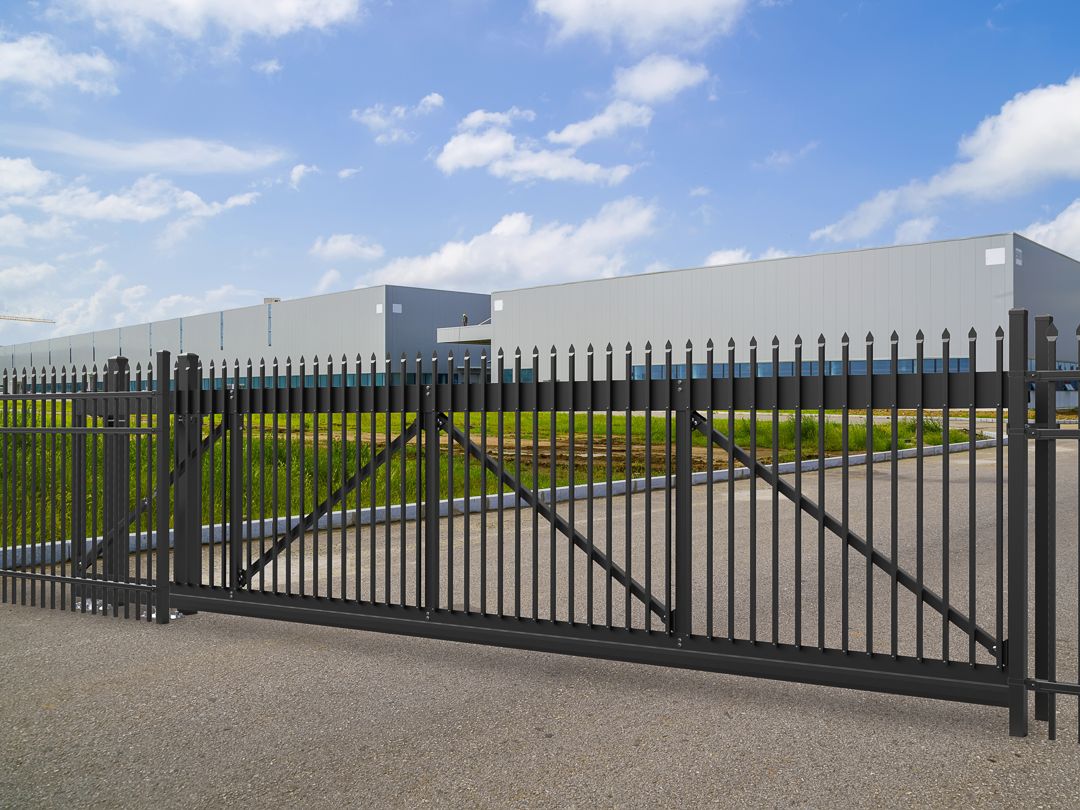

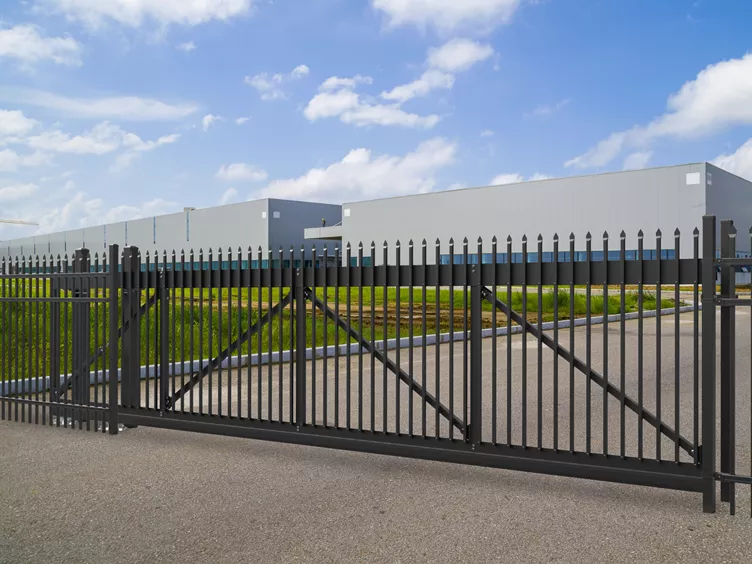

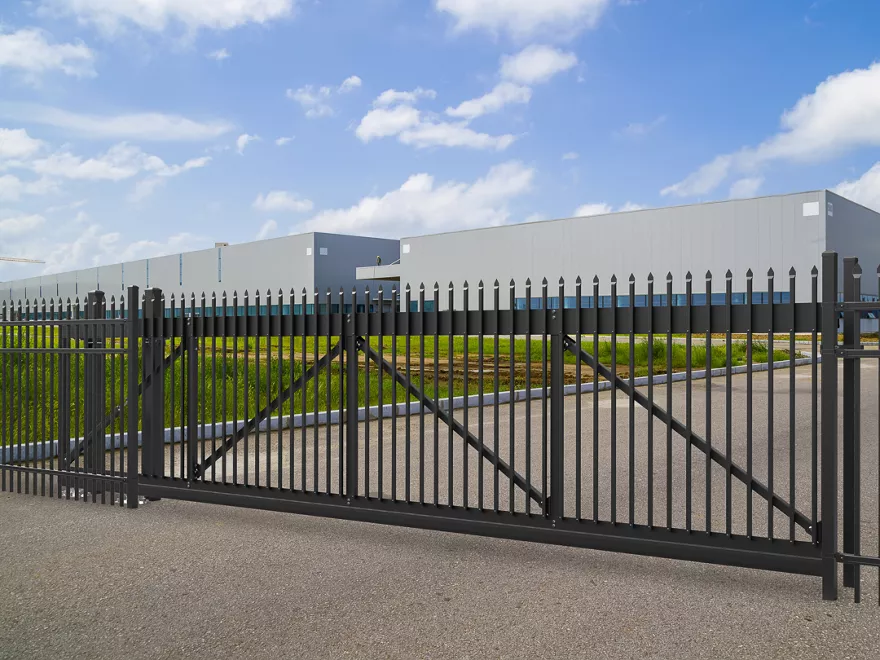

TransPort Traverse II is an engineering marvel that challenges the status quo of typical cantilever designs. Its unique bottom track with carriage support rollers perfectly balances the entire gate structure over a single axis for smooth, effortless transition.
- Increased frame architecture for improved durability and high functionality
- Decreased framework counter balance so bigger gates fit in smaller spaces
Fabrication & Design
Most engineered cantilever gate systems are fully welded, but TransPort Traverse II is a knockdown gate system and is assembled on-site. This innovative design is less likely to be damaged during transit and takes up less space, maximizing the amount of material that can be shipped on a single truck.
Colors
Black
Bronze
White
Sand
Styles
Majestic
Classic
Genesis
Invincible
Cantilever Gate System
The simple component design decreases risk of damage during transit and decreases installation time.
Reversible Design
Install on either side of the gate opening for flawless installation, every time.
Buy American Act
All components of this system are manufactured in the USA and meet the Buy American Act.
Uprights: 2 1/2" x 16 ga.
Diagonal Braces: 2"sq x 16 ga.
Bottom Track: 3.75" x 6.5" Aluminum Profile
Top Track: 3" x 5.5" Aluminum Profile
Pickets (6'-22' openings): 1"sq x 16 ga.
Pickets (24'-30' openings): 1"sq x 1/8" wall
Heights: 4', 5', 6', 7', 8', & 10'
Nominal Openings: 6' - 30'
*Gate tracks pre-drilled for left or right openings.
Gate Styles
Classic Majestic Genesis Invincible Matching Fence Systems:
