Meets IEEE Grounding Standards
Ameristar was the first to successfully test steel powder coated fence to IEEE Grounding Standards.
Matrix
- Power Utility
- Energy Facilities
- Petro-Chemical
- Water & Waste Water
Mesh Infill Perimeter Enclosure Grid
Matrix security fence is a perimeter enclosure grid designed to expand to the level of site security required. Its framework structure allows the user to define the level of security needed by choosing a suitable mesh option that details the degree of delay and site visibility. The Matrix design is a result of multiple power utility companies seeking a design that could comply with CIP-014 physical security standards.
Hardened Matrix - Infill + Pale
Matrix Hardened combines X-Span® mesh infill grid and Impasse pales to create a heavy-duty security system with increased delay times. Choose from Trident™, Stronghold™ or Gauntlet™ pale options.
Colors
Black
Grey
Styles
X-Span
X-Span Modified
X-Screen
WireWorks (8ga or 6ga)

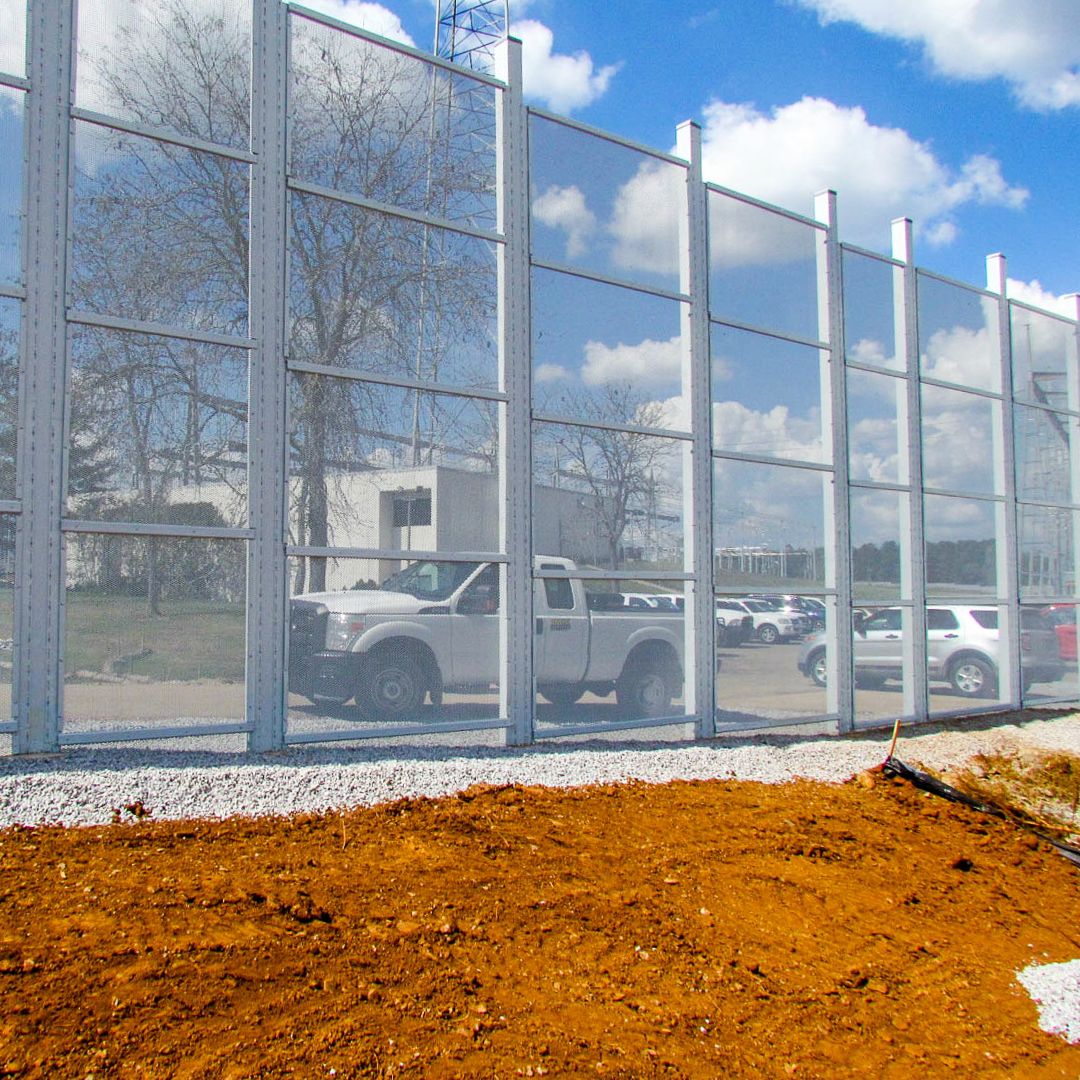

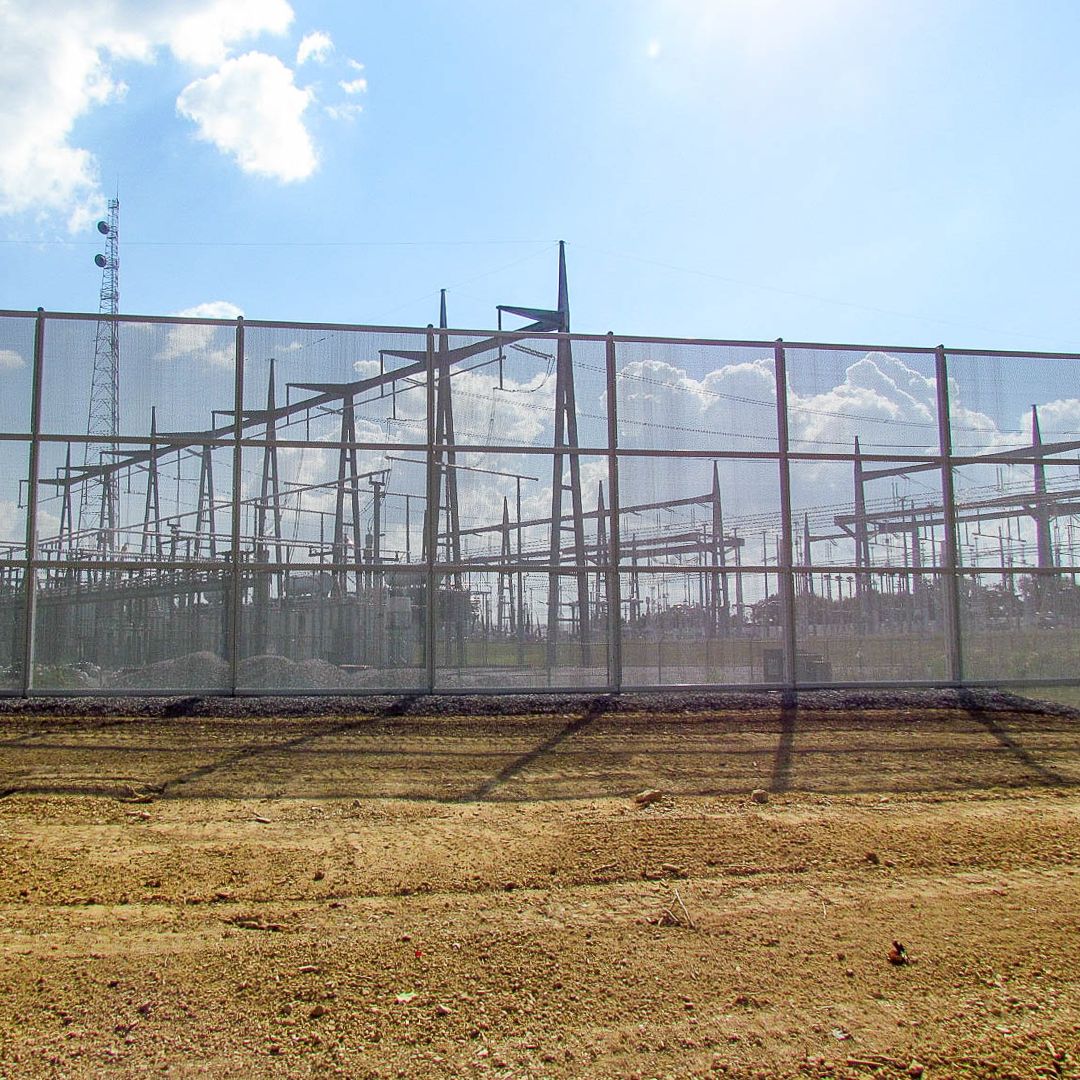

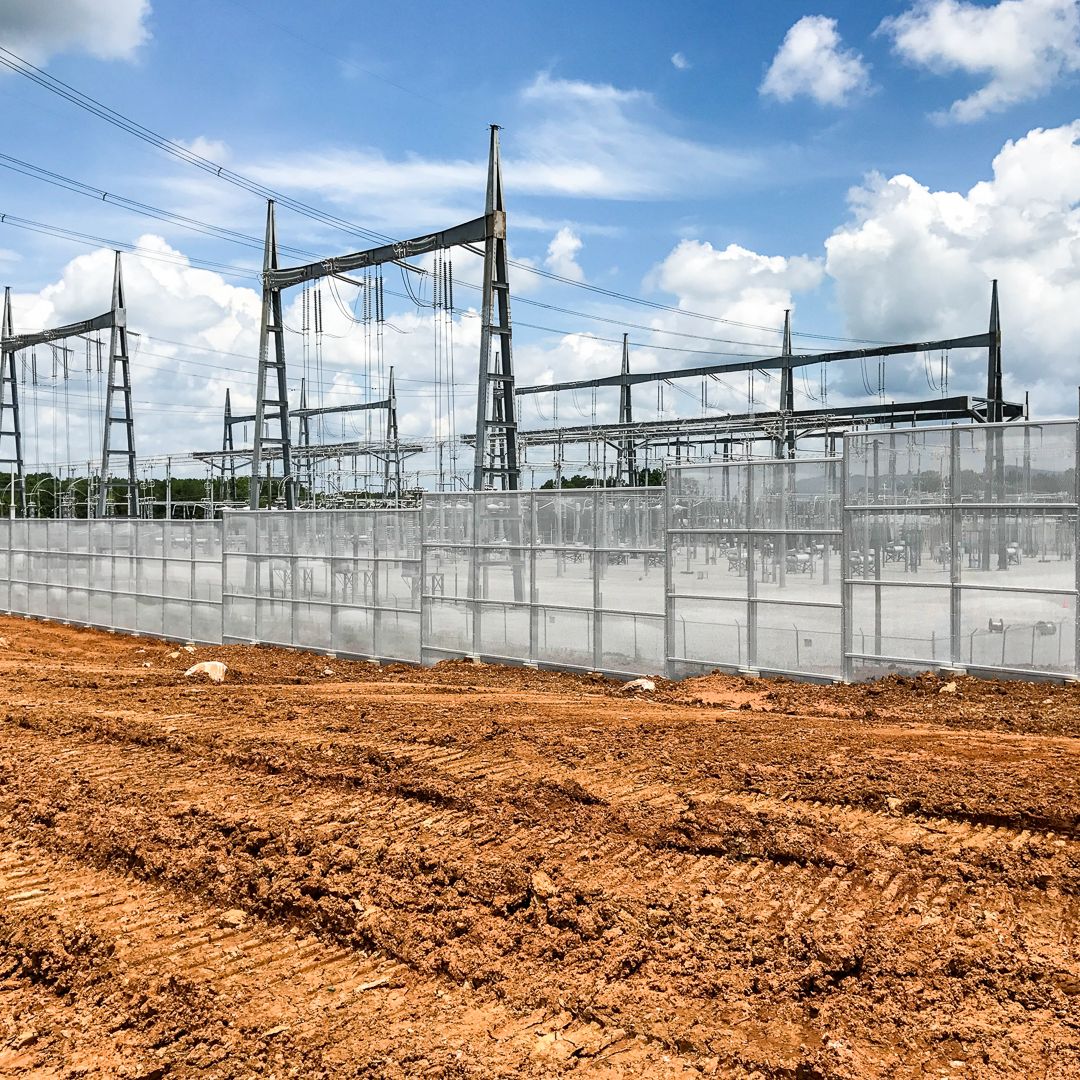

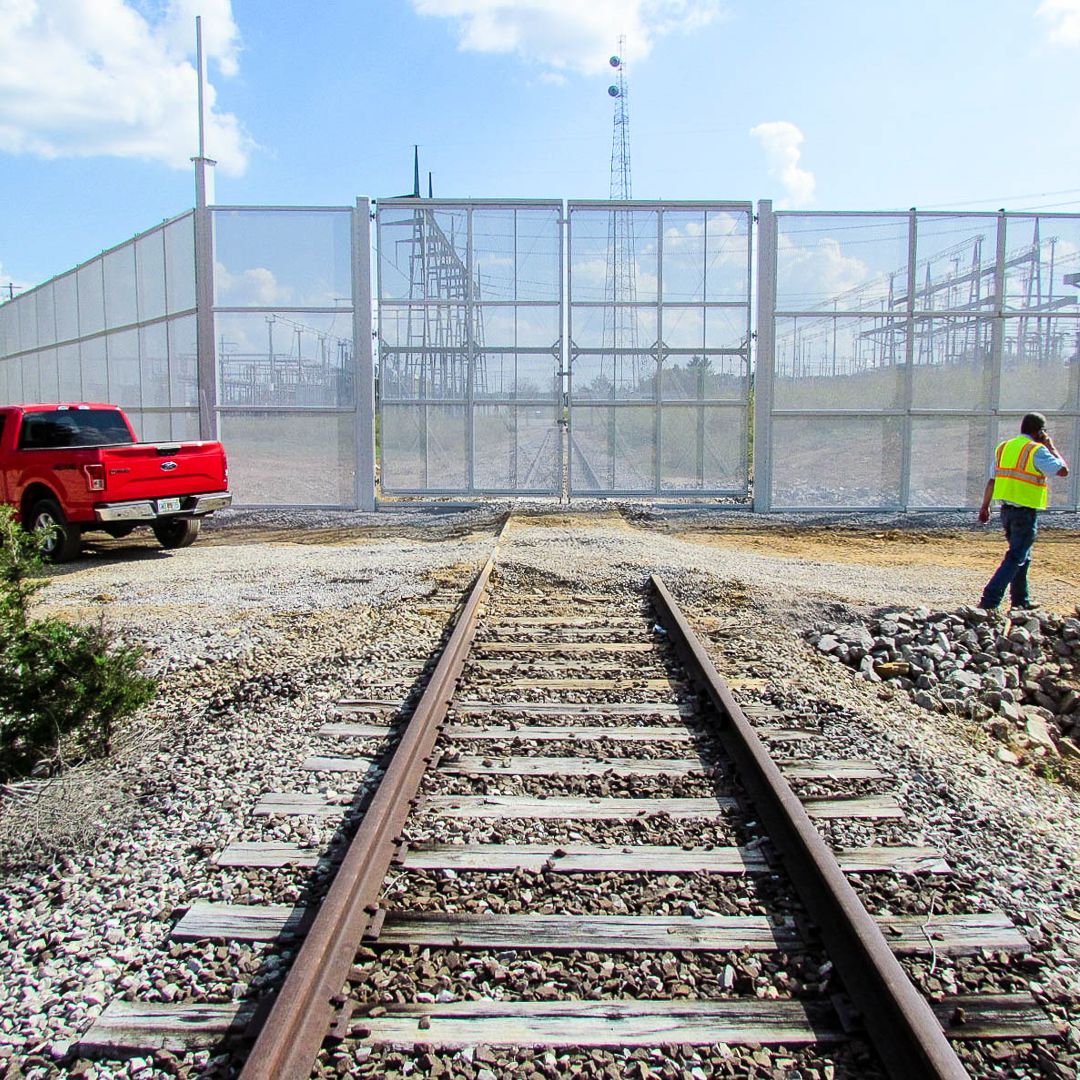

Infill: X-Span
Infill: X-Span

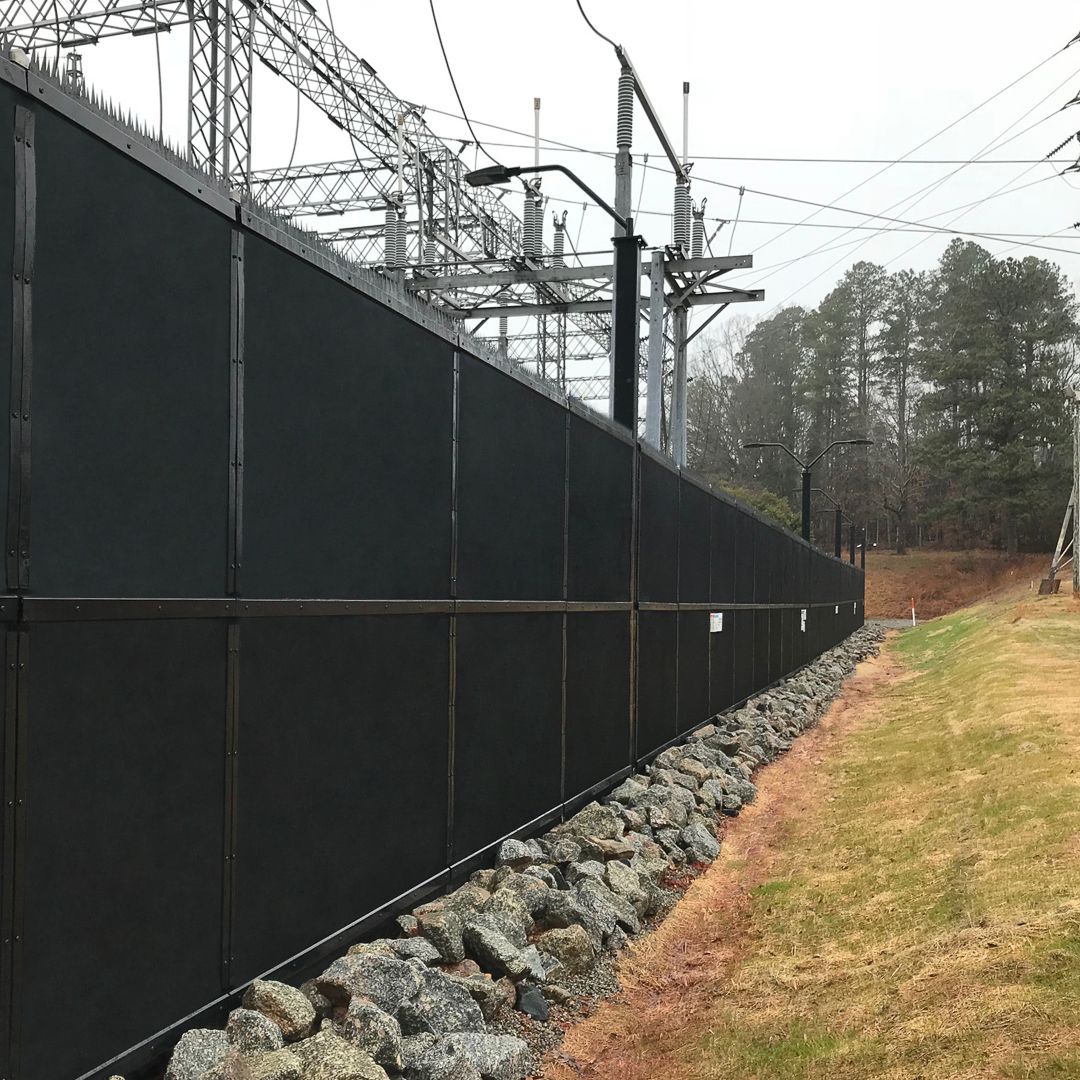

Infill: WireWorks

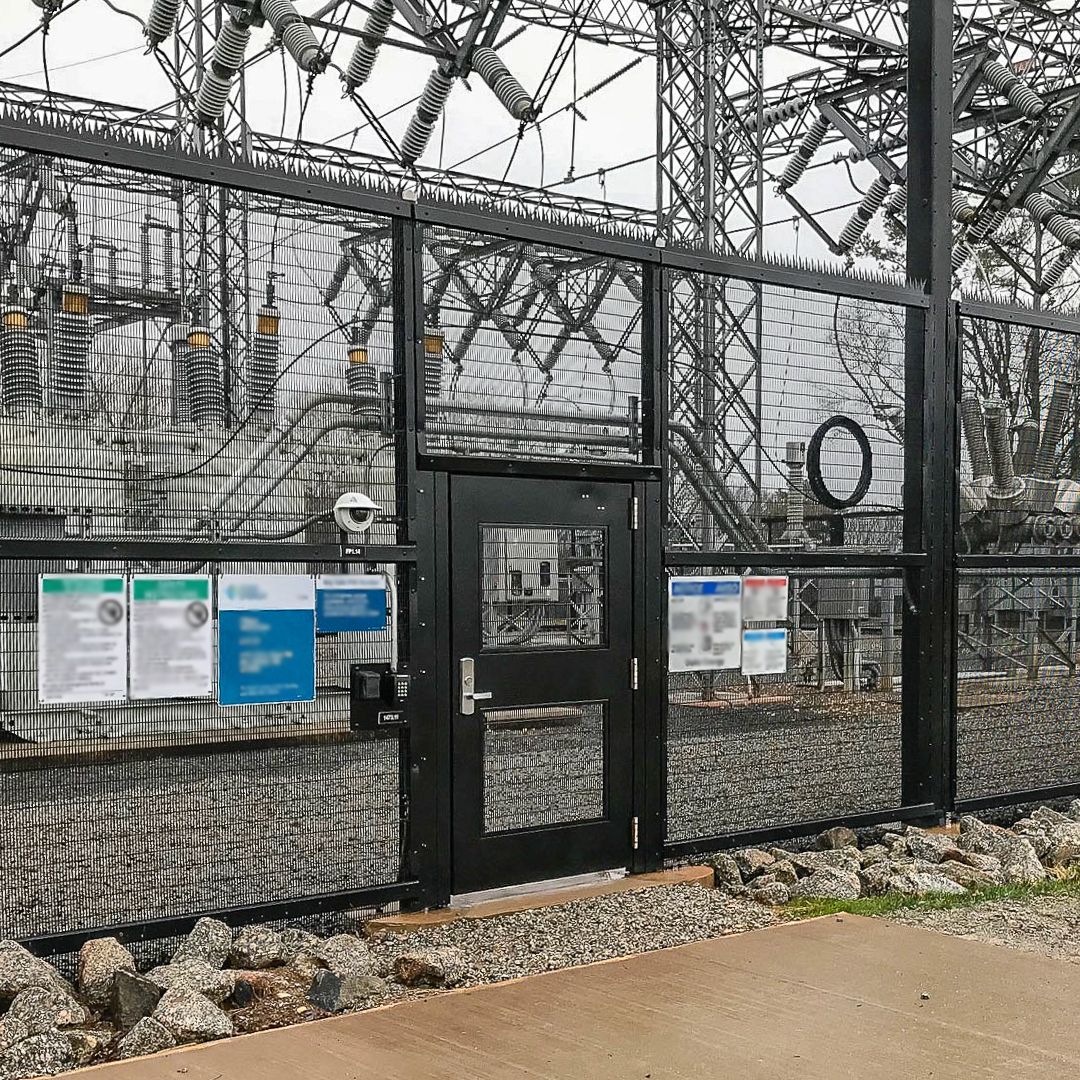

w/ spike toppers and Exodus GateInfill: WireWorks
w/ spike toppersInfill: X-Span

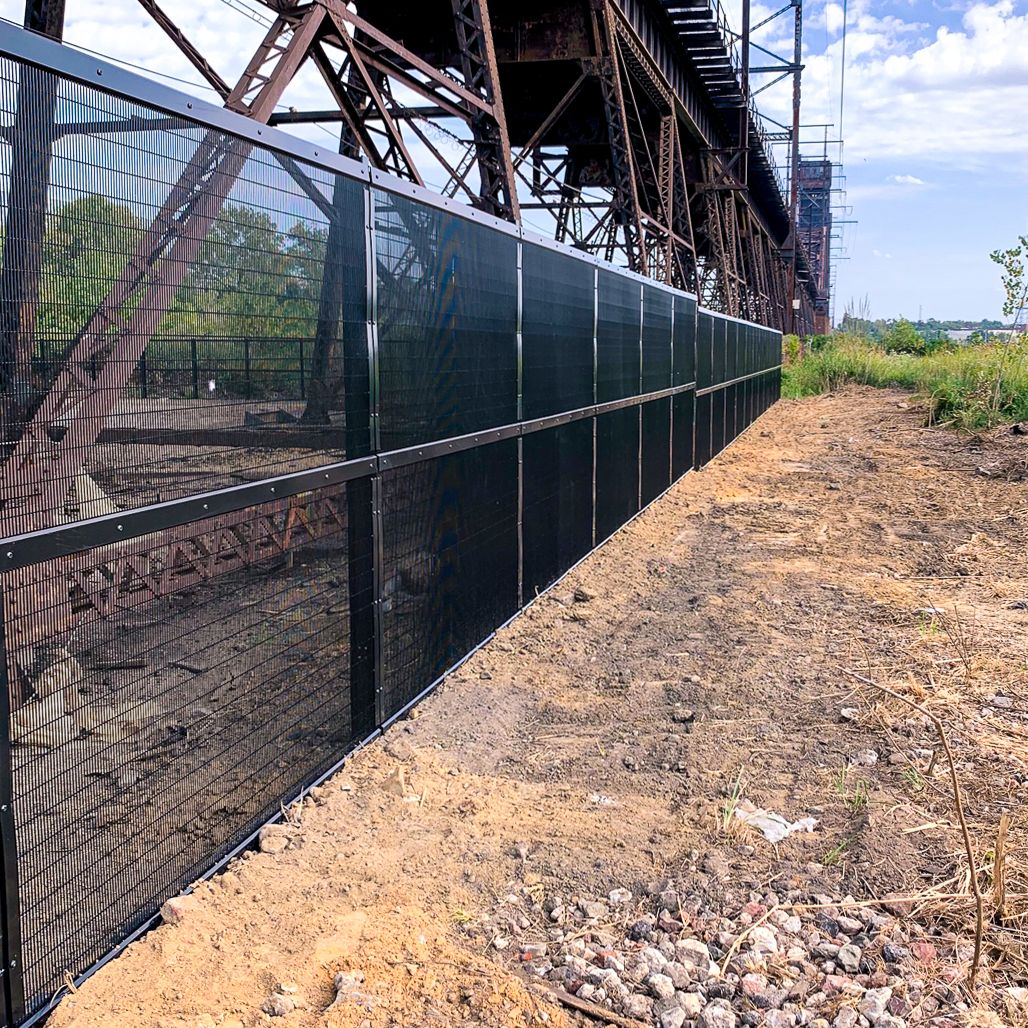

Infill: WireWorks
Infill: X-Span

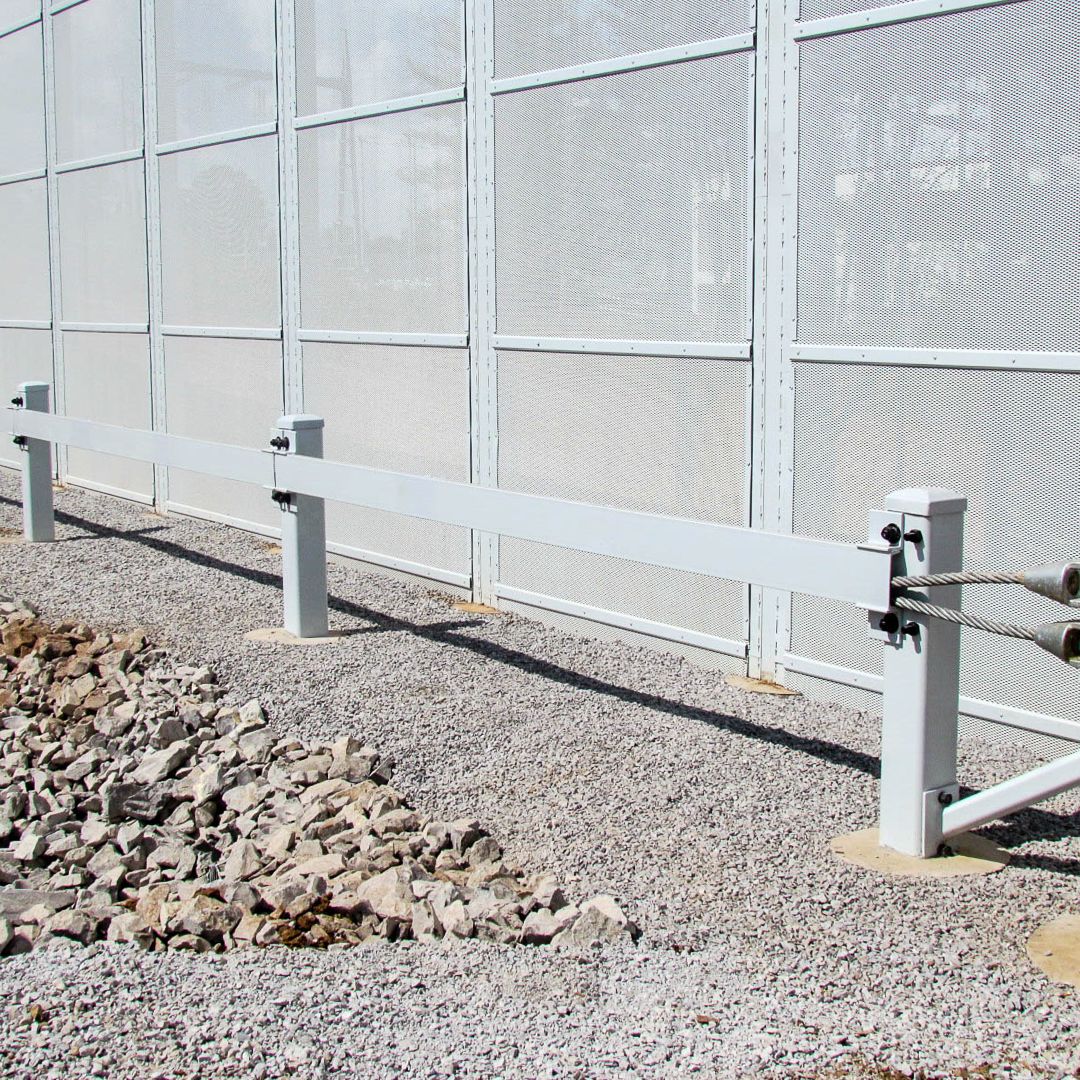

w/ Stalwart anti-ram barrierInfill: X-Span
w/ tech poleInfill: X-Span
Infill: X-Span
Infill: X-Span
Infill: Ballistic panels
w/ spike toppersInfill: X-Span
w/ Stalwart anti-ram barrierInfill: X-Span
Adjust Visibility via Mesh Infill
We offer a variety of mesh infill options with varying degrees of opacity ranging from 30-90% opacity.
PermaCoat Powder Coated
Our pre-galvanized steel base material is subjected to an 11-stage process to prepare for a dual top-coat finish.
Integrate Active Security Peripherals
Run conduits, wiring and other cables within the fence system to eliminate costly trenching and boring.
Standard Matrix
Infill Panels:
- X-Span Modified Mesh: .5" X #13R (.188 Strand)
- X-Span Mesh: 75" X #9F
- X-Screen Louvered Mesh: 1.5" X #14
- WireWorks Mesh: .5" X 3" X 6ga & 8ga
Rails: 2" C-SHAPE x 11ga
I-Beam Posts: 4" x 2.75" x 11ga
Heights: 8'-8", 10'-8", 12'-9", 15'-9" & 20'-10"
Hardened Matrix
Infill Panels: X-Span Mesh: 75" X #9F
Rails: 2" C-SHAPE x 11ga
I-Beam Posts: 4" x 2.75" x 11ga
Impasse Pales: 2.75"w x 14ga
- Standard Spacing: 3.25"
- Anti-Scale Spacing: 1.5"
Heights: 9'-9", 11'-9" & 13'-10"
- Our system has been evaluated and recommended by an accredited herpetologist for mitigating intrusion of nuisance animals.
- Ameristar's Matrix can now be upgraded to include Ballistic Shields for an added layer of security.
Barbed Wire
- 3 wire or 6 wire available
Tech Posts
- Add an optional tech post for cameras and active security technology.
Additional Conduits
- Manufactured to easily fit additional conduits for wiring if necessary.
