Hot-Dip Galvanized Option
Available in a Galvanized or PermaCoat finish to protect from the elements.
Matrix Alpha
- Power Utility
- Petro-Chemical
- Energy Facilities
- Water & Waste Water
Curtain Wall Perimeter Enclosure Grid
Matrix Alpha security fence is a curtain wall system designed to expand to the level of site security required. Its framework structure allows the user to define the level of security needed by choosing a suitable mesh option that details the degree of delay and site visibility. Available in hot dip galvanized (HDG) or PermaCoat, the Matrix Alpha fence system is a baseline for perimeter security. Alpha’s curtain wall architecture allows for variable post spacing yielding reduced installation times.
Colors
Black
Grey
Hot-Dip Galvanized
Style
X-Span
X-Span Ultra
X-Span Modified
X-Screen
WireWorks (8ga or 6ga)

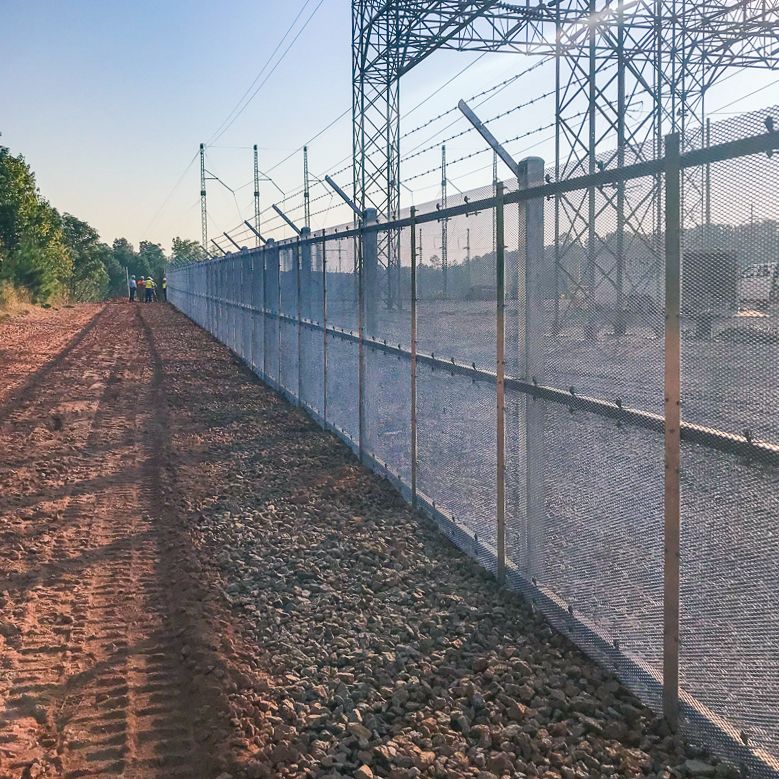

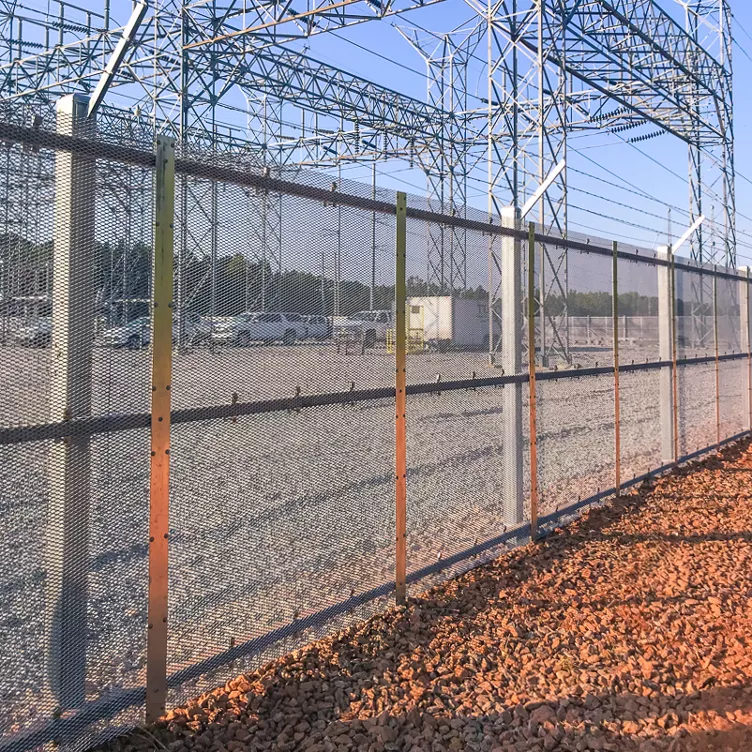

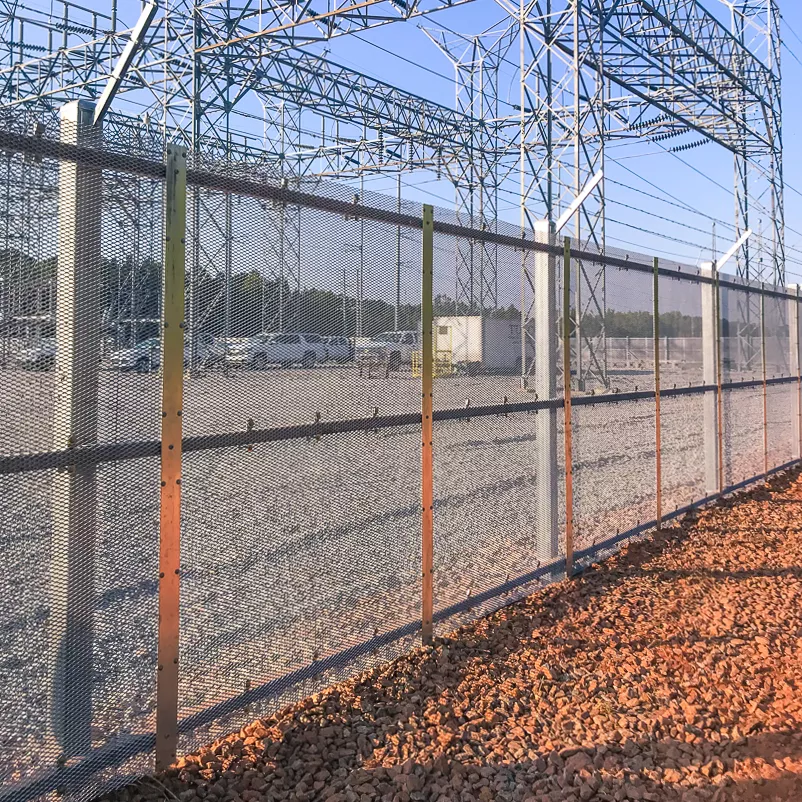

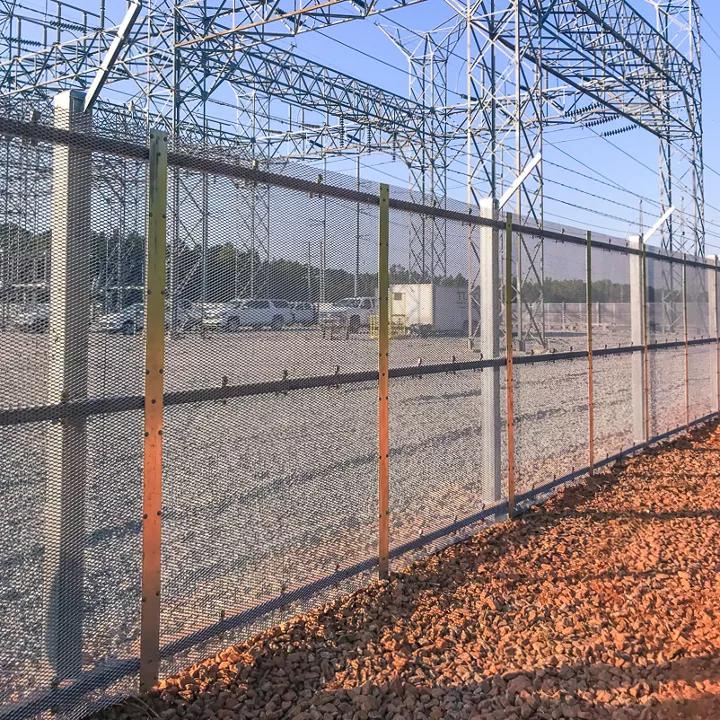

Infill: X-Span

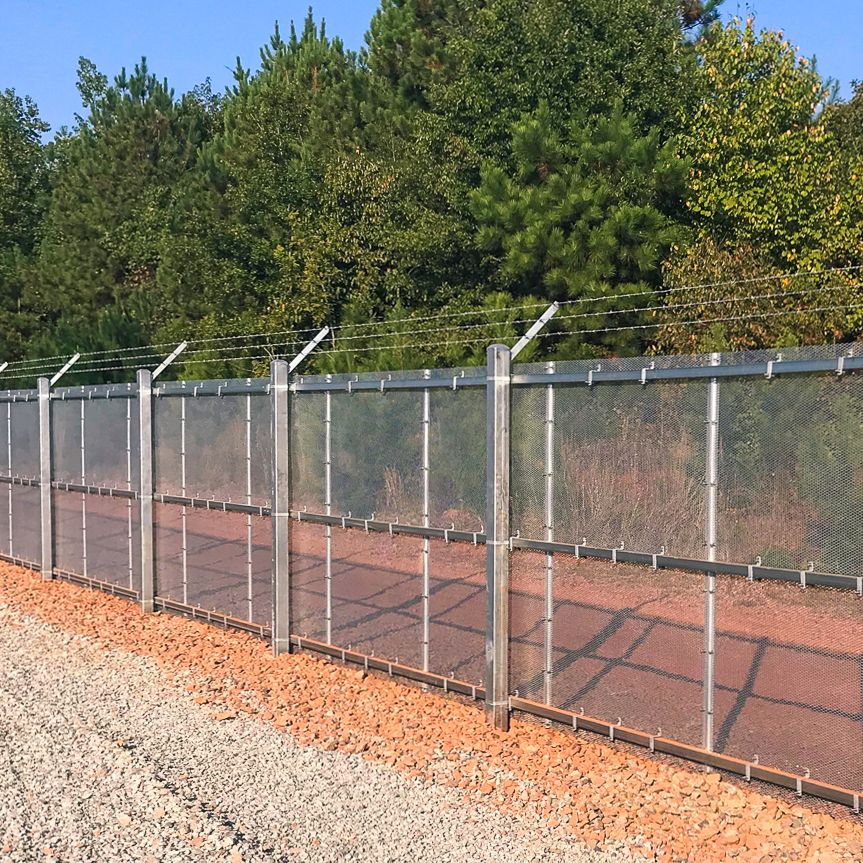

w/ barbed-wire arms
Infill: X-Span

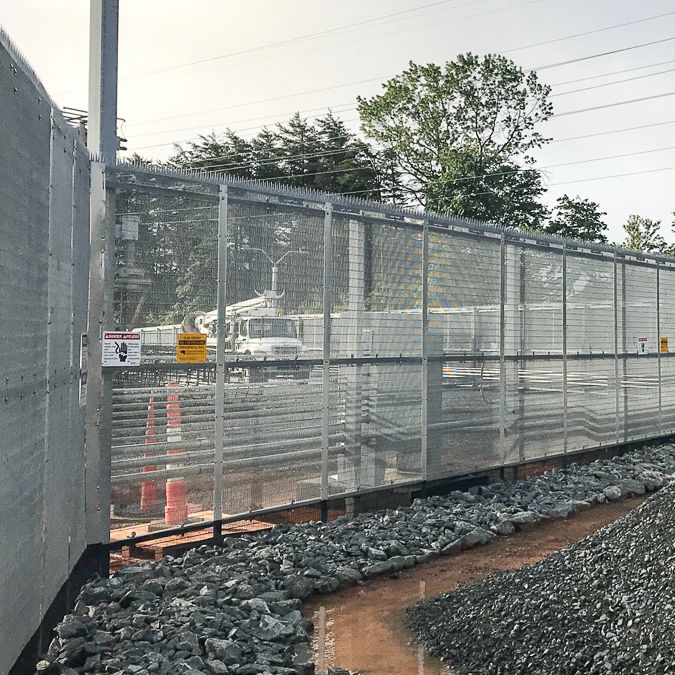

w/ barbed-wire armsInfill: WireWorks
w/ spike toppersInfill: X-Span

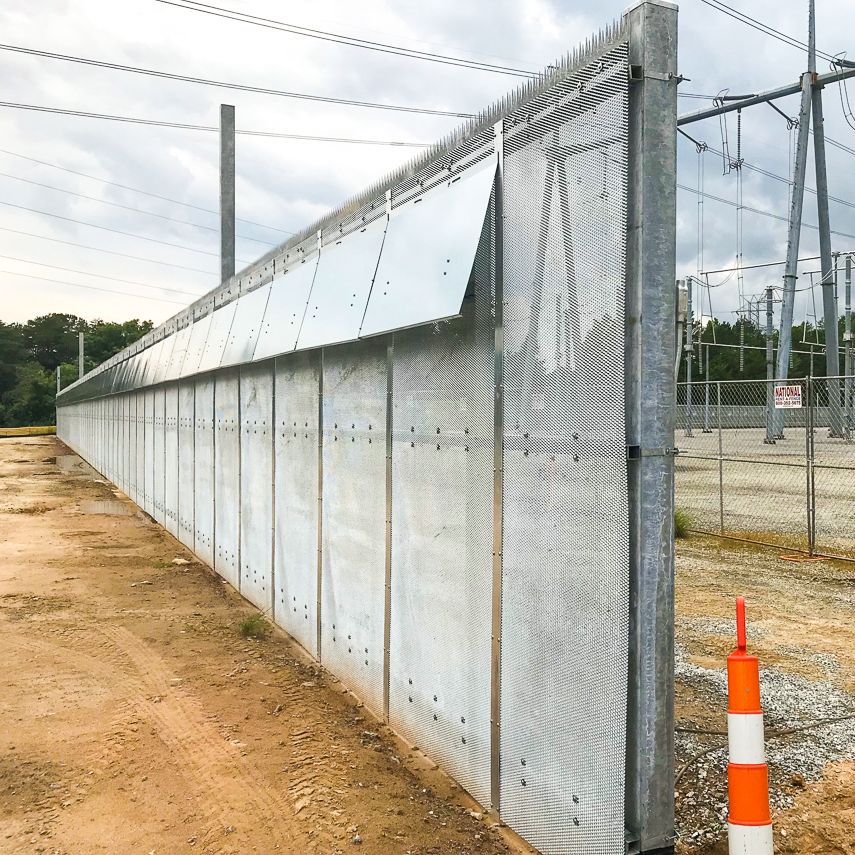

w/ Animal Mitigation Shied & spike toppersInfill: X-Span
w/ barbed-wire armsInfill: X-Span
w/ barbed-wire armsInfill: X-Span
w/ barbed-wire armsInfill: WireWorks
w/ spike toppersInfill: WireWorks
w/ spike toppersInfill: X-Span
w/ Animal Mitigation Shied & spike toppersInfill: WireWorks
w/ spike toppersInfill: WireWorks
w/ spike toppersInfill: WireWorks

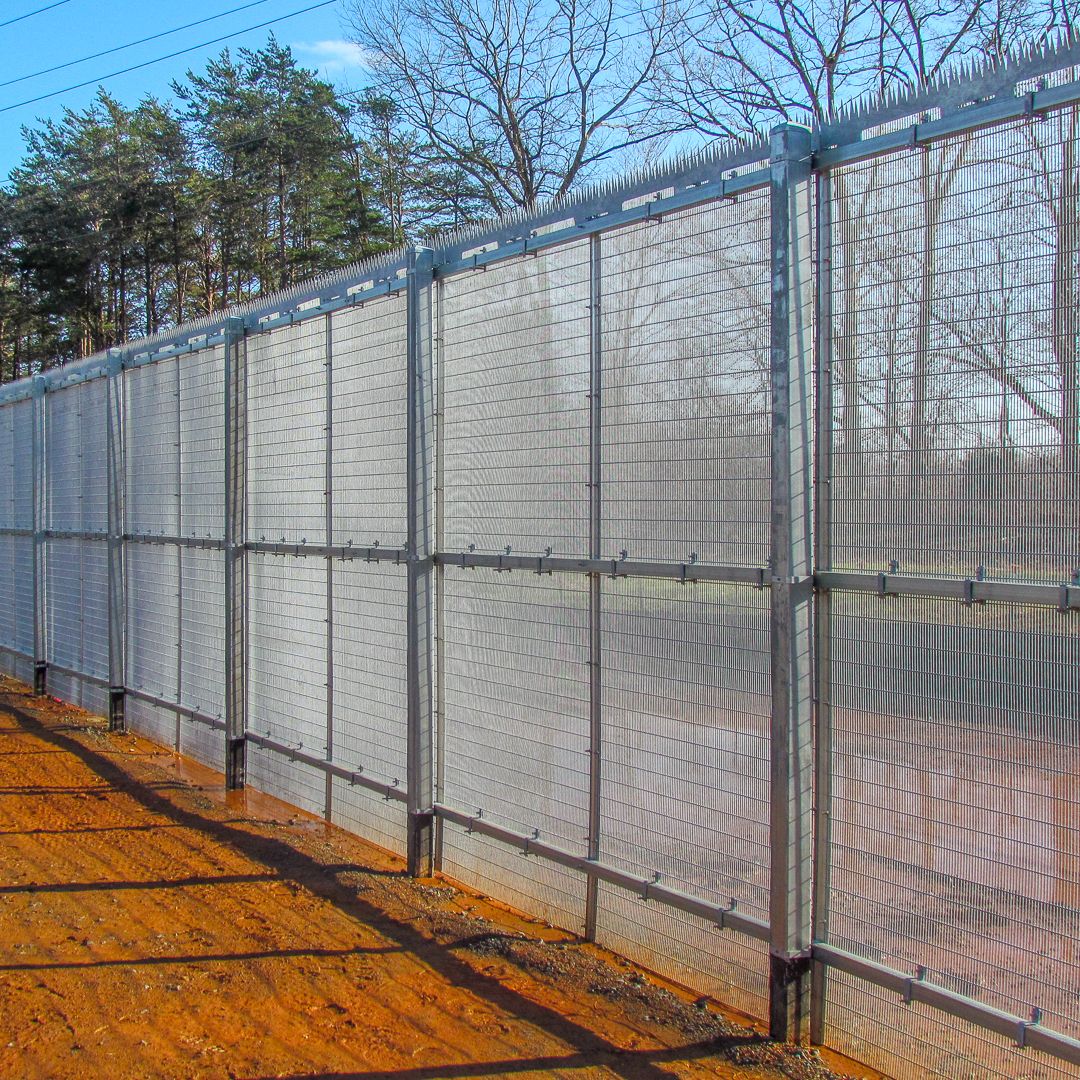

w/ spike toppersInfill: WireWorks

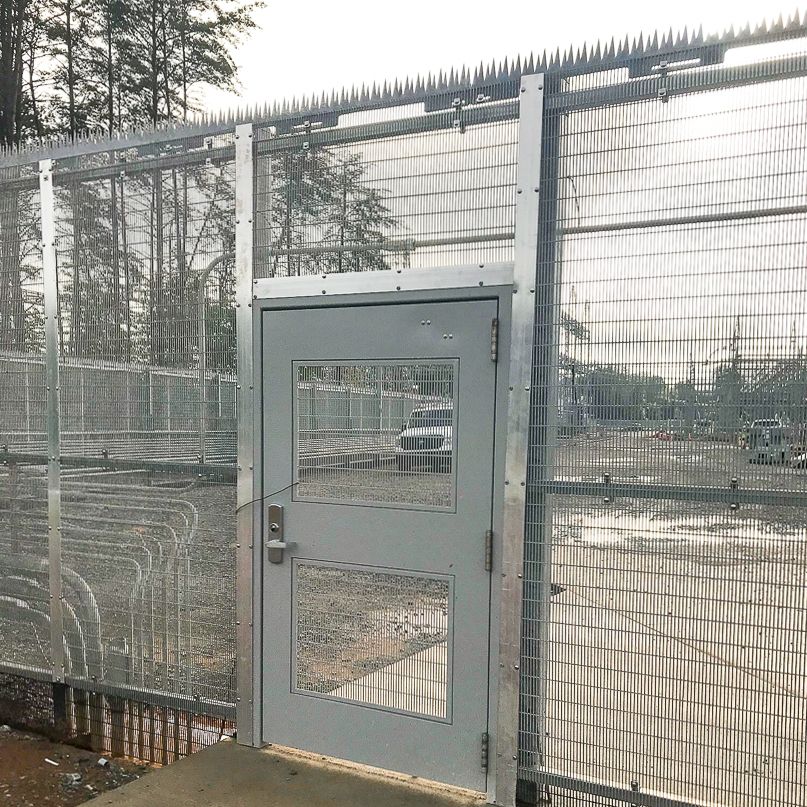

w/ spike toppers & Exodus gateInfill: X-Span
w/ Animal Mitigation Shied & spike toppers
Meets IEEE Grounding Standards
Ameristar was the first to successfully test steel powder coated fence to IEEE Grounding Standards.
Curtain Wall Design
The curtain wall architecture allows for variable post spacings and streamlined installation process.
Adjust Visibility via Mesh Infill
We offer a variety of mesh infill options with varying degrees of opacity ranging from 30-90% opacity.
Infill Panels:
- X-Span Mesh: .75" X #9 (Available in HDG only)
- X-Span Ultra Mesh: .5" X #13
- X-Span Modified Mesh: .5" X #13R (.188 Strand)
- X-Screen Louvered Mesh: 1.5" X #14 (Available in HDG only)
- WireWorks Mesh: .5" X 3" X 6ga & 8ga
Rails: 2" X 2"
Posts: 3" X 6" & 6" X 6"
Heights: 7' - 15' in 6in. increments
Finish
- Hot Dip Galvanized (HDG)
- PermaCoat
Post Installation
- Direct Bury
- Plated
Barbed Wire
- 3 wire available
Tech Posts
- Add an optional tech post for cameras and active security technology.
- Our system has been evaluated and recommended by an accredited herpetologist for mitigating intrusion of nuisance animals.
Spike Toppers
- Add galvanized spike toppers to the system for additional deterrence and security.
