Crash Rated
This barrier has been crash tested and certified to ASTM F2656, Dept of State and/or other international standards.
M530 & M550 Barrier Arms
M30 & K12 | Drop Arm Barrier

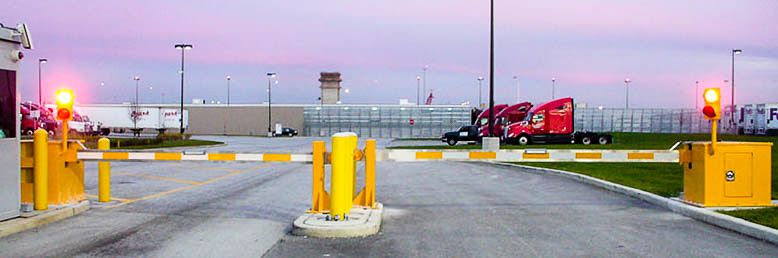

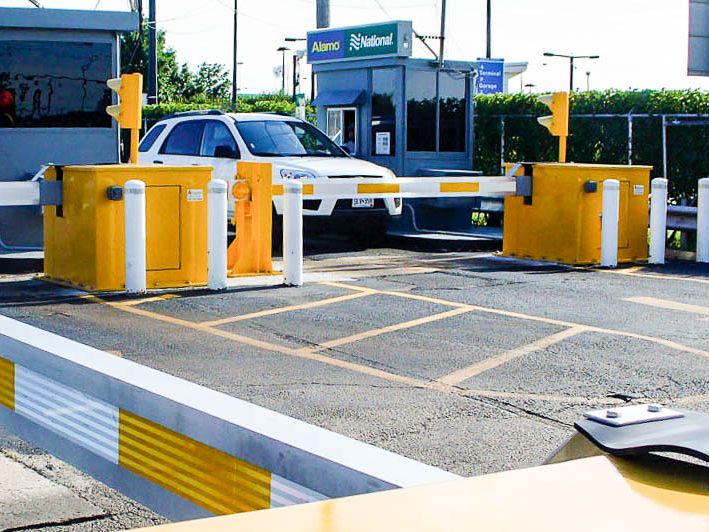

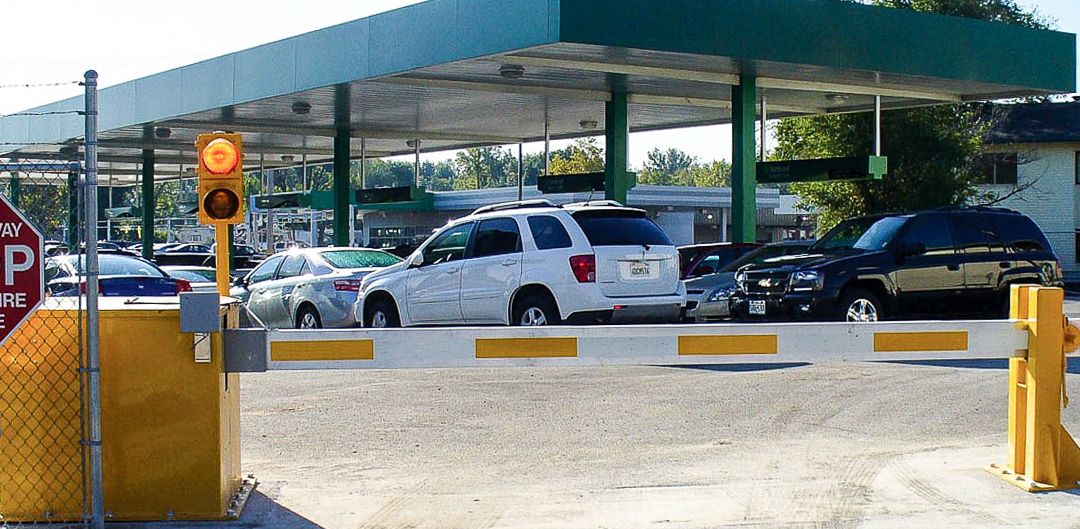

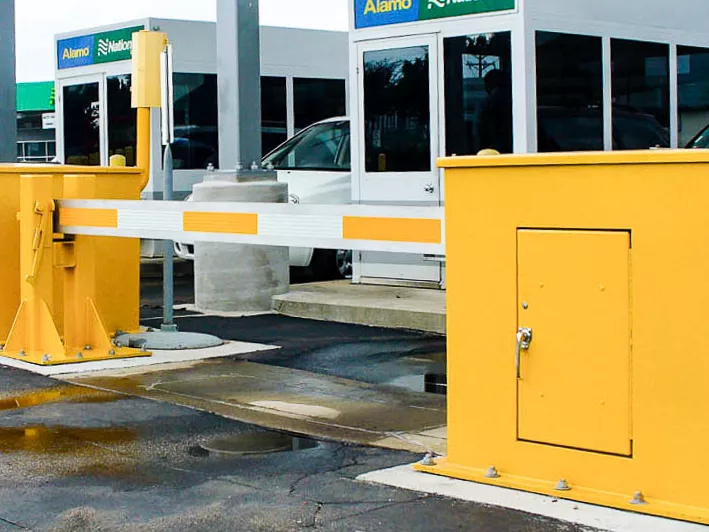

The barrier arm is a multi-purpose entry drop-arm that controls traffic while providing an anti-ram obstacle to protect from potential vehicular threats. We offer two different crash rated barrier arm options - the M550 is K12/L3 rated and M530 is rated as M30/P1.
The M530 has two successfully tested designs. The 22-foot barrier design does not require excavation across the roadway, whereas the 12-foot barrier design uses a shallow excavation across the roadway for a monolithic installation. The M530 barrier arm is also available in engineered design lengths to fit specific site requirements.
Standard Features
- Barrier arm lengths are available in 10, 14, 16, 18 & 20 ft., but are not crash tested.
- 1 HP motor w/ brake
- Housing & receiver - galvanized & painted yellow
- Dual channel loop detector
Standard Colors
- Aluminum arm w/ white & yellow reflective striping
Up to 22 Ft. Road Coverage
These barrier arms can span distances at 12 ft. and 22 ft. for anti-ram coverage of larger roadways.
Optional Traffic Light Available
Add an integrated traffic light with mounting post to the barrier arm for addition traffic control.
Shallow Mount Installation
Barrier can be installed at a more shallow bury depth, saving time and money. See Specifications for more details.
M530 - M30 Crash Test Certified (12 ft.)
Arm Height: 2’ 8” | Barrier Arm Length: 12 ft.
Bury: 36” | Foundation: 60” x 60” for each end
F2656-15 Certified P1
M530 - M30 Crash Test Certified (22 ft.)
Arm Height: 2’ 8” | Barrier Arm Length: 22 ft.
Bury: 12” | Foundation: 72” wide, length determined by barrier length
F2656-15 Certified P1
M550 - K12/L3 Crash Test Certified (12 ft. & 18 ft.)
Arm Height: 2’ 6”
Barrier Arm Length
- Electric 12-22 feet
- Hydraulic 12-28 feet
- Manual 12-28 feet
Bury: 36" | Foundation: 48” wide, length determined by barrier length
Any size over 18’ is engineered
Custom Design Options
- Custom colors available
Optional Power
- 208-240v/1ph/60Hz
- 460-480v/3ph/60Hz
- 230v/1ph/50Hz
- 380-415v/3ph/50Hz
Control Options
- Master Control Panel – Pushbutton
- Remote Control Panel – Pushbutton
- Master Control Panel – Touchscreen
- Remote Control Panel - Touchscreen
- Radio Controls
Additional Options
- Integrated traffic light w/ mounting post
- 24vdc Traffic Light Controls
- Strobe light w/ audible alarm
- Single Channel Loop Detector Module
- Battery Backup – Provides Reserve Cycles
- High/Low Voltage Circuit Protection
- Maintenance Operating Screen
- 2 Programmable Inputs and/or Outputs
- Flasher Relay
