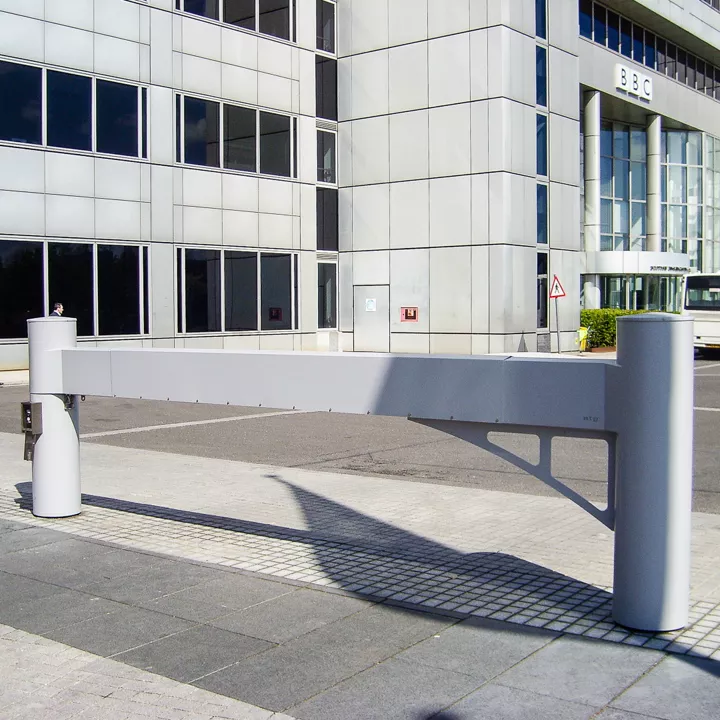

Cityscape Gate
PAS 68 | Barrier Gate

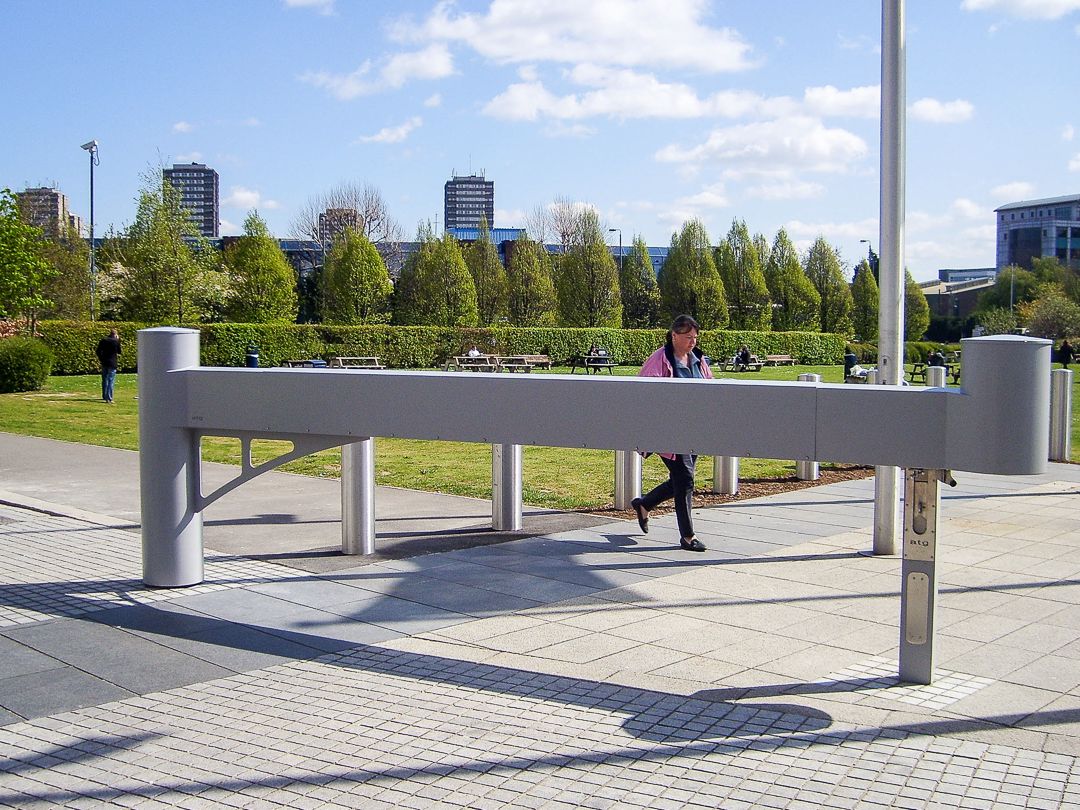

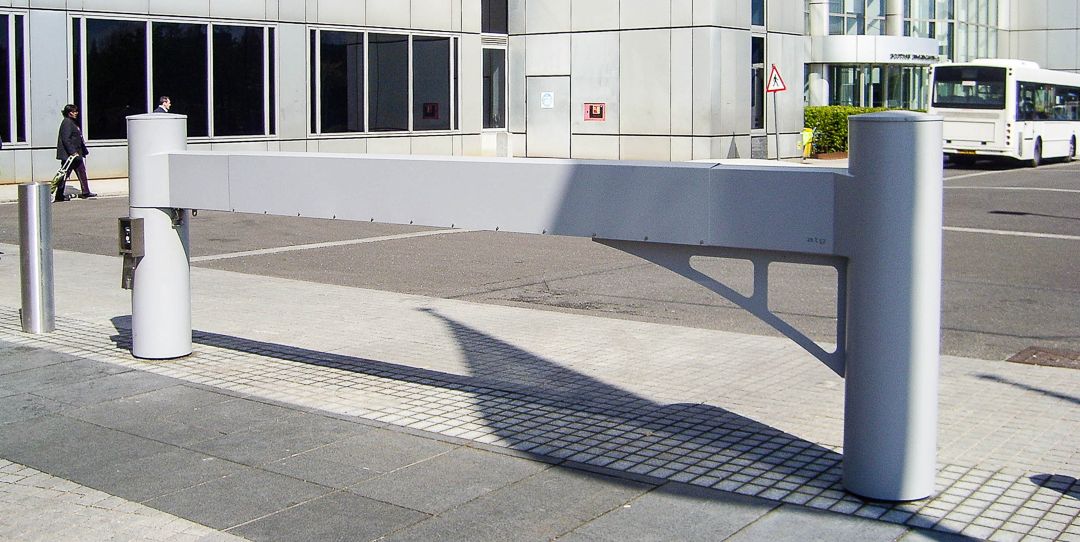

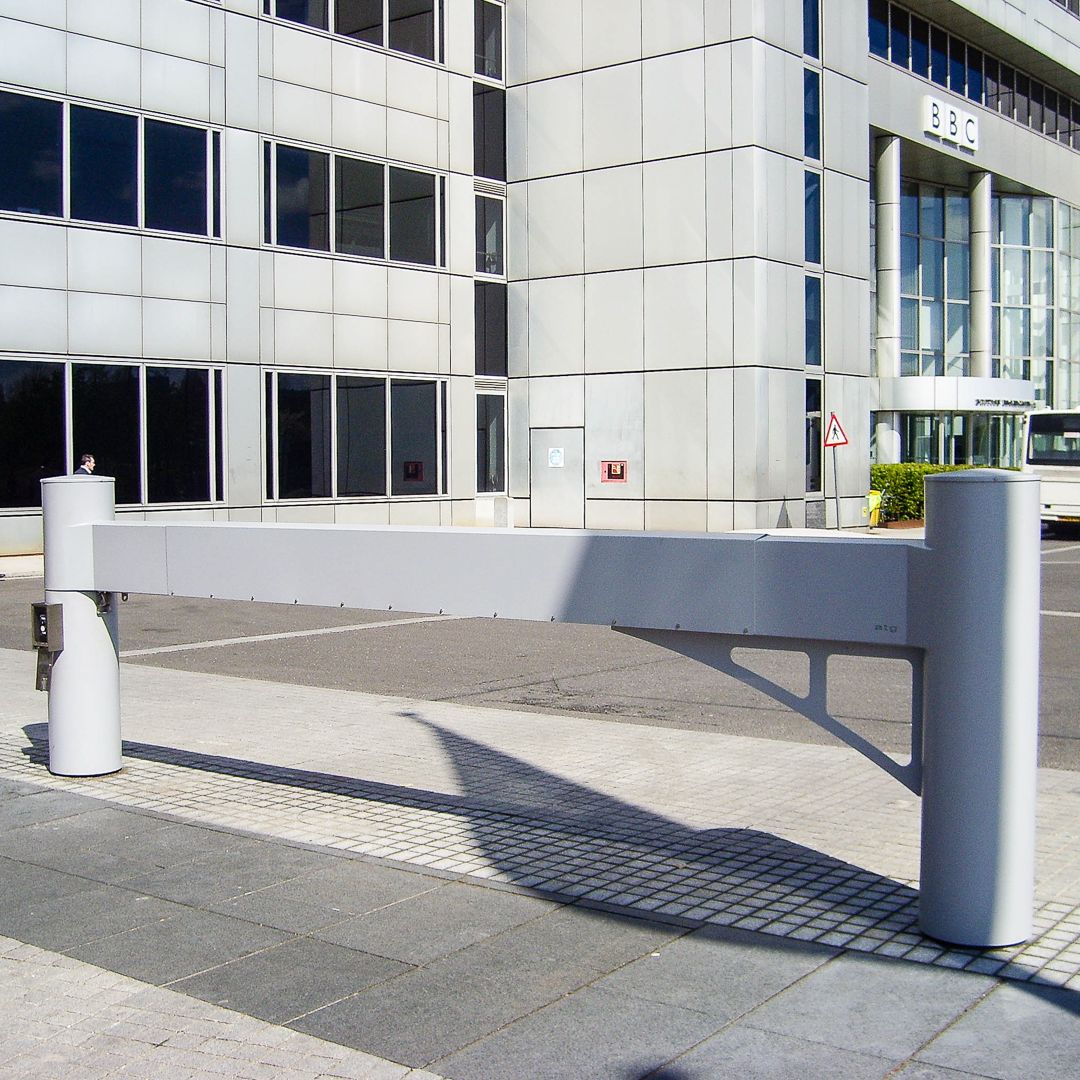

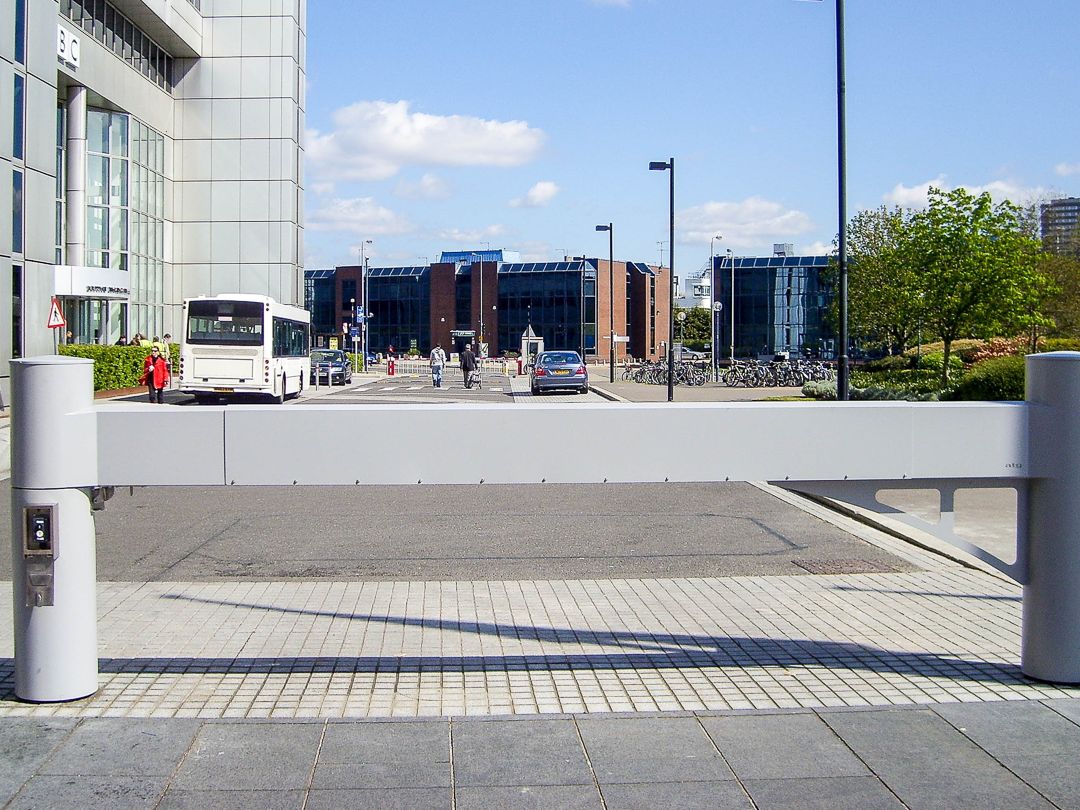

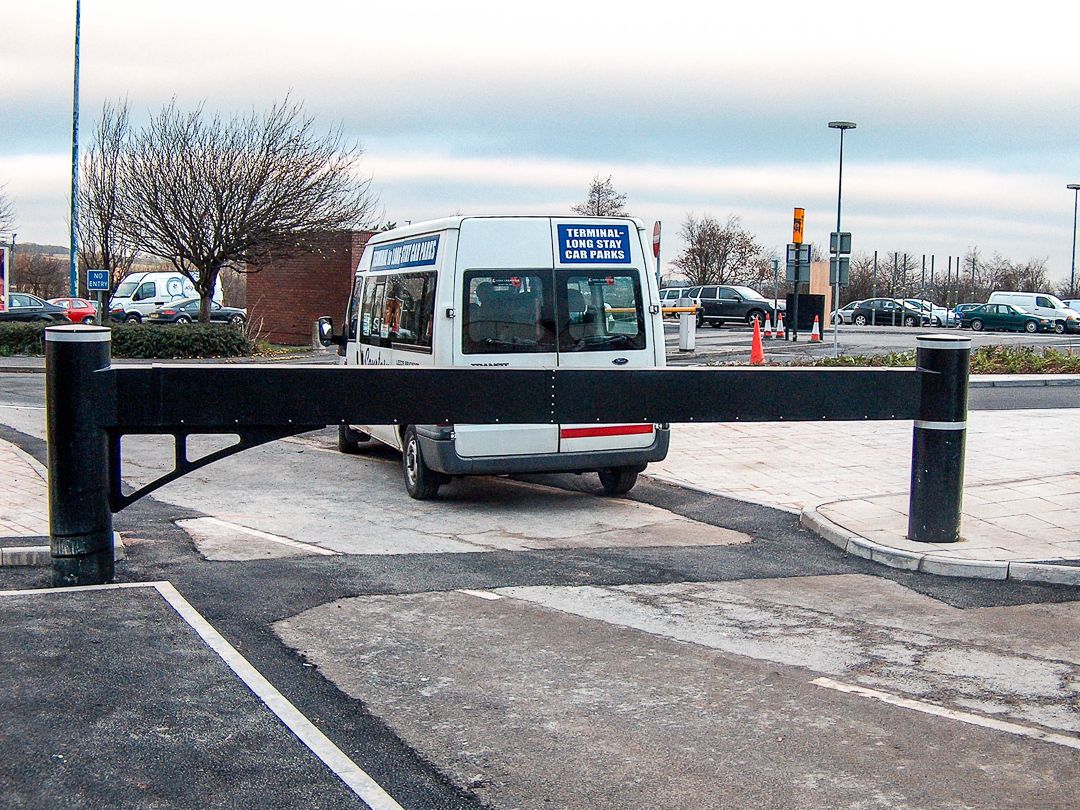

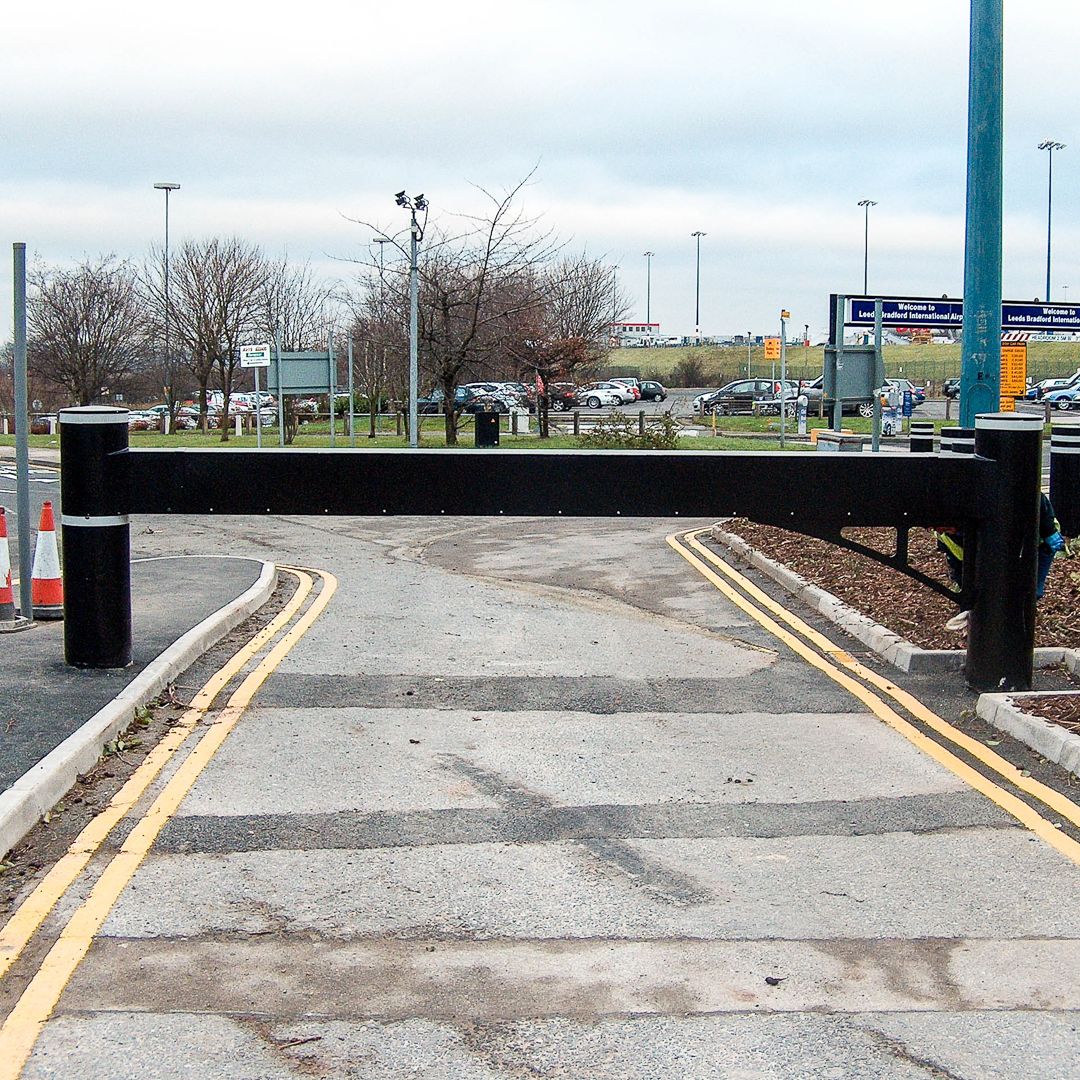

Cityscape barrier gate is perfect for urban environments with a heavy amount of pedestrian traffic and an irregular need to allow vehicular access. The aesthetically appealing design blends well in urban areas, unlike most gates or barriers that have a bland industrial appearance.
The Cityscape gate can be installed using shallow mount technology and is lightweight, yet remarkably strong. Also, the Cityscape gate uses up to 70% less concrete than similar passive vehicle entry barriers on the market. This means a quicker and more cost effective installation with less maintenance requirements in the future.
Up to 19.5 Ft. Road Coverage
Cityscape gate can span distances from 13 ft. up to 19.5 ft. for anti-ram coverage on larger roadways.
Hydraulic Power Unit
Ameristar offers top of the line HPU systems with a variety of options for seamless operation of our security products.
Shallow Mount Installation
Barrier can be installed at a more shallow bury depth, saving time and money. See Specifications for more details.

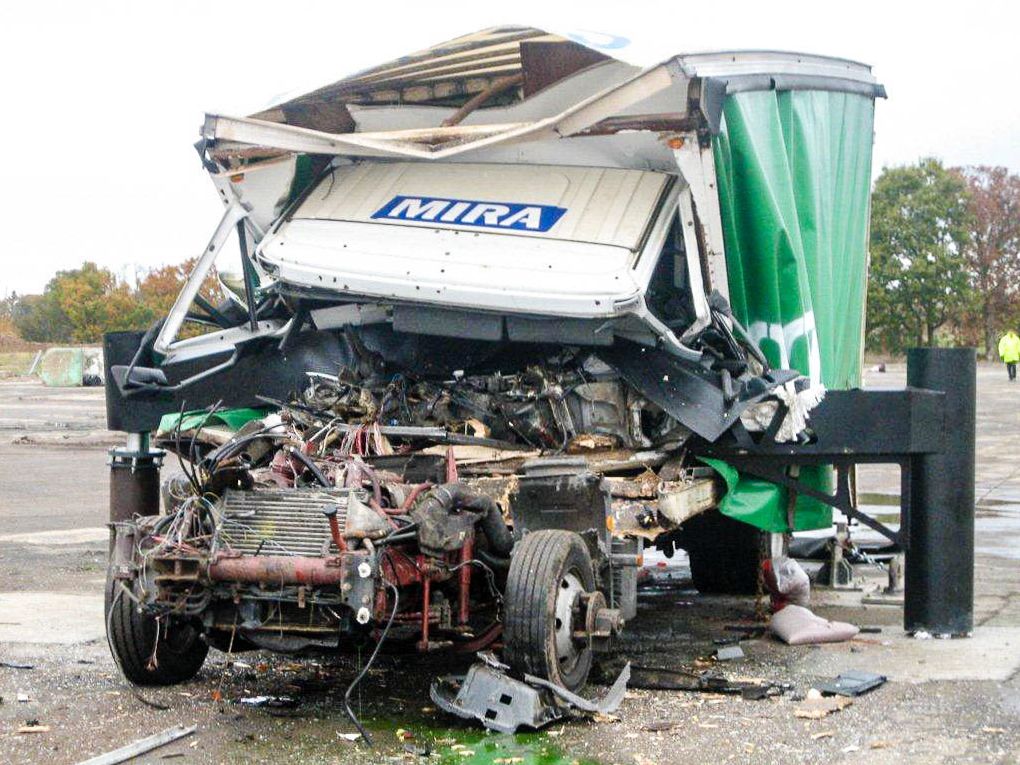

PAS 68: V/7500(N2)/64/90:1.09/2.40 Crash Test Certified
Gate Height: 49.5" | Road Coverage: 13 - 19.5 ft.
Bury: 18" | Foundation: 213” x 40”
Standard Colors
- Black powder coat
Custom Design Options
- Custom painted
- Stainless Steel
- Reflective banding
