SAFETY Act Certified & Designated
This product has been given the highest level of liability protection by the U.S. Department of Homeland Security.
Patriot
K12 | Rising Beam Barrier
The Patriot® rising beam barrier drastically increases perimeter entry security. This security barrier has a rapid deployment rate and remains functional even after a crash, making it an excellent choice for high security access control.

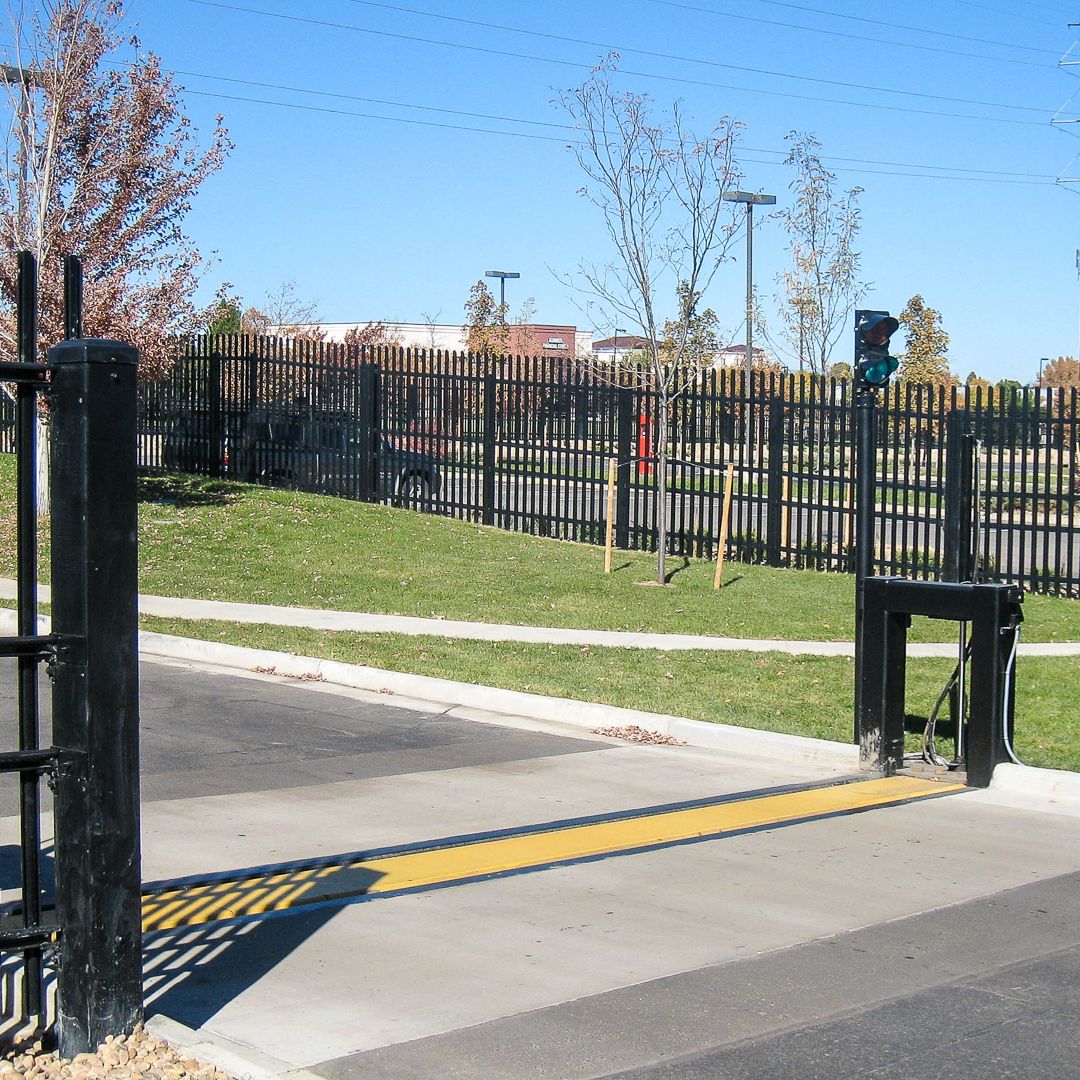

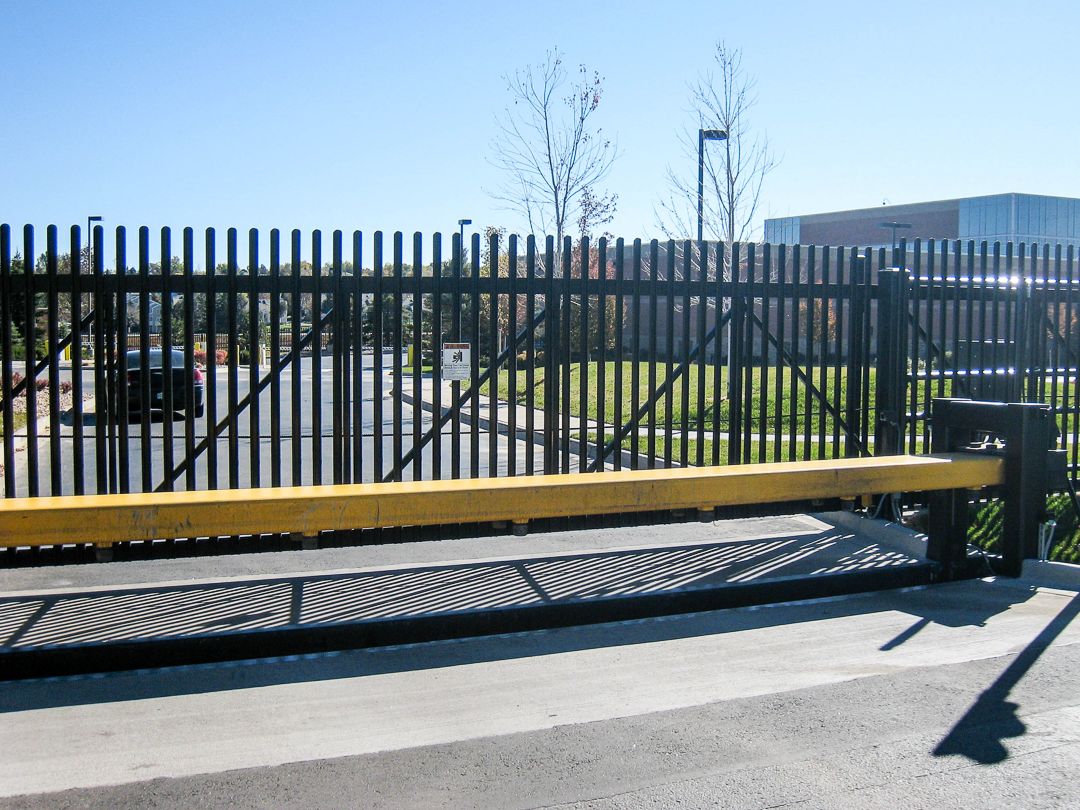

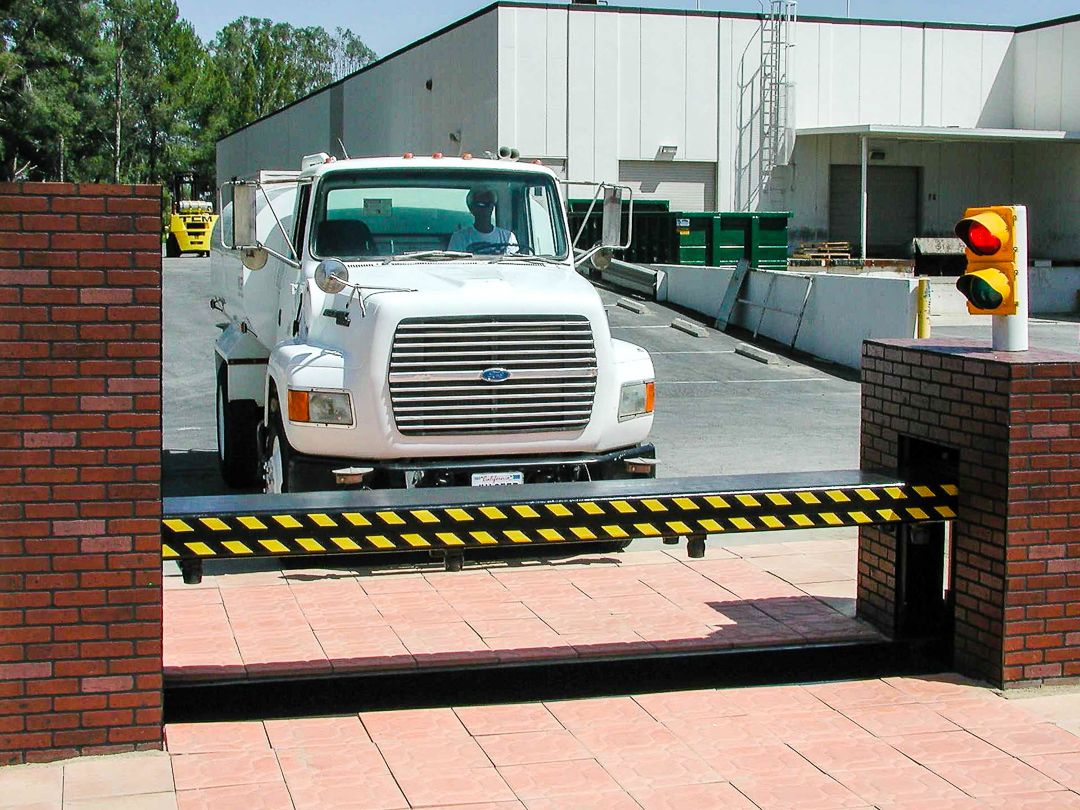

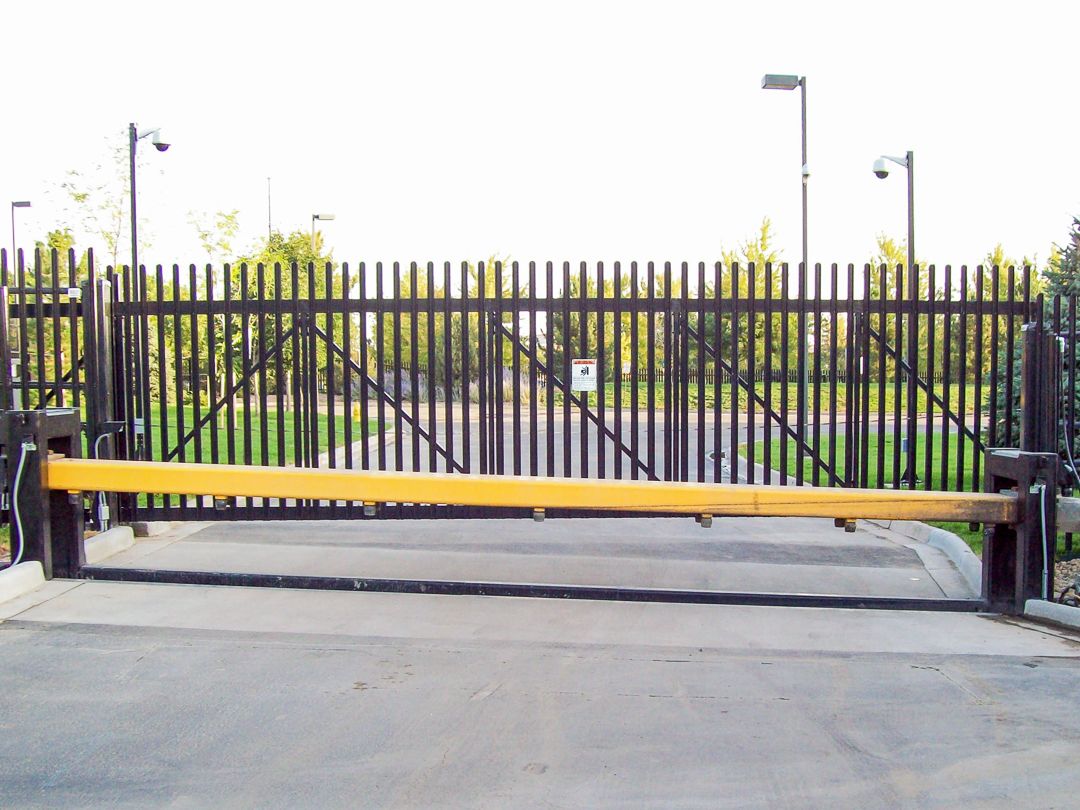

The Patriot utilizes a hydraulically actuated structural beam that is recessed flush with the roadway when granting vehicle access. It also has a rapid rate of deployment between 3 and 5 seconds and a full guard height of 36". The crash beam barrier's primary excavation is outside the roadway opening, and minimal excavation is required across the roadway, which avoids most underground utilities and obstructions.
Black
Crash Rated

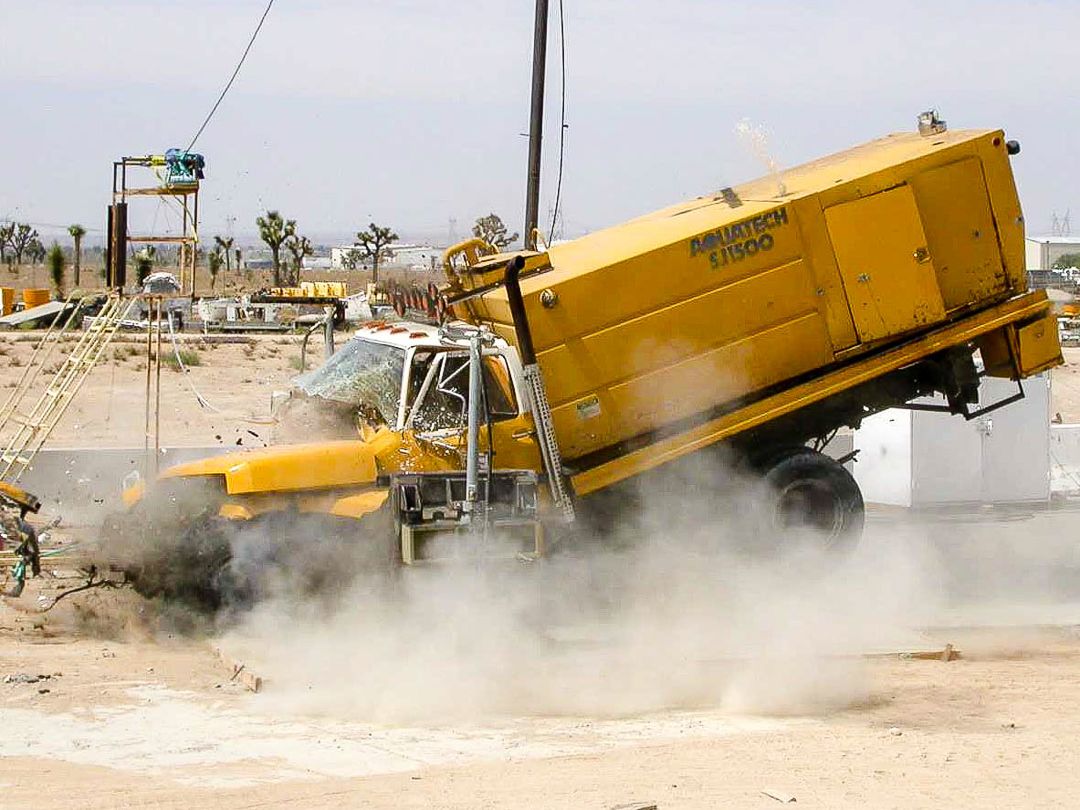

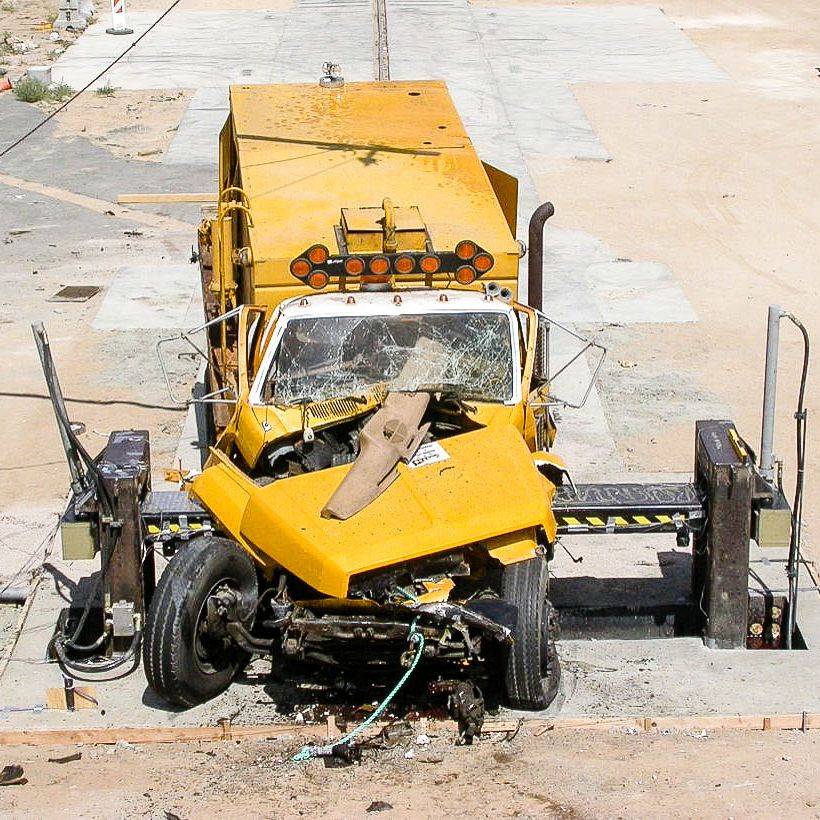

This barrier has been crash tested and certified to ASTM F2656, Dept of State and/or other international standards.
Rapid Deployment Rate
Deployment rate of only one second when EFO (emergency fast operation) control is added to this system.
Hydraulic Power Unit
Ameristar offers top of the line HPU systems with a variety of options for seamless operation of our security products.
K12 Crash Test Certified
Height: 36" | Road Coverage: 12 - 24 ft.
Bury: 69" | Foundation: 346” x 84” (for 24ft. barrier)
F2656-15 Certified
Standard Colors
- Black powder coat
Custom Design Options
- Stainless steel
- Custom color powder coating
- Reflective banding
Additional Options
- Traffic signal lights
- Custom painted finish
- Integrated traffic arm or sliding gate
Patriot Playlist
Patriot Crash Test
