Buy American Act
All components of this system are manufactured in the USA and meet the Buy American Act.
ATLAS M30 Bollard

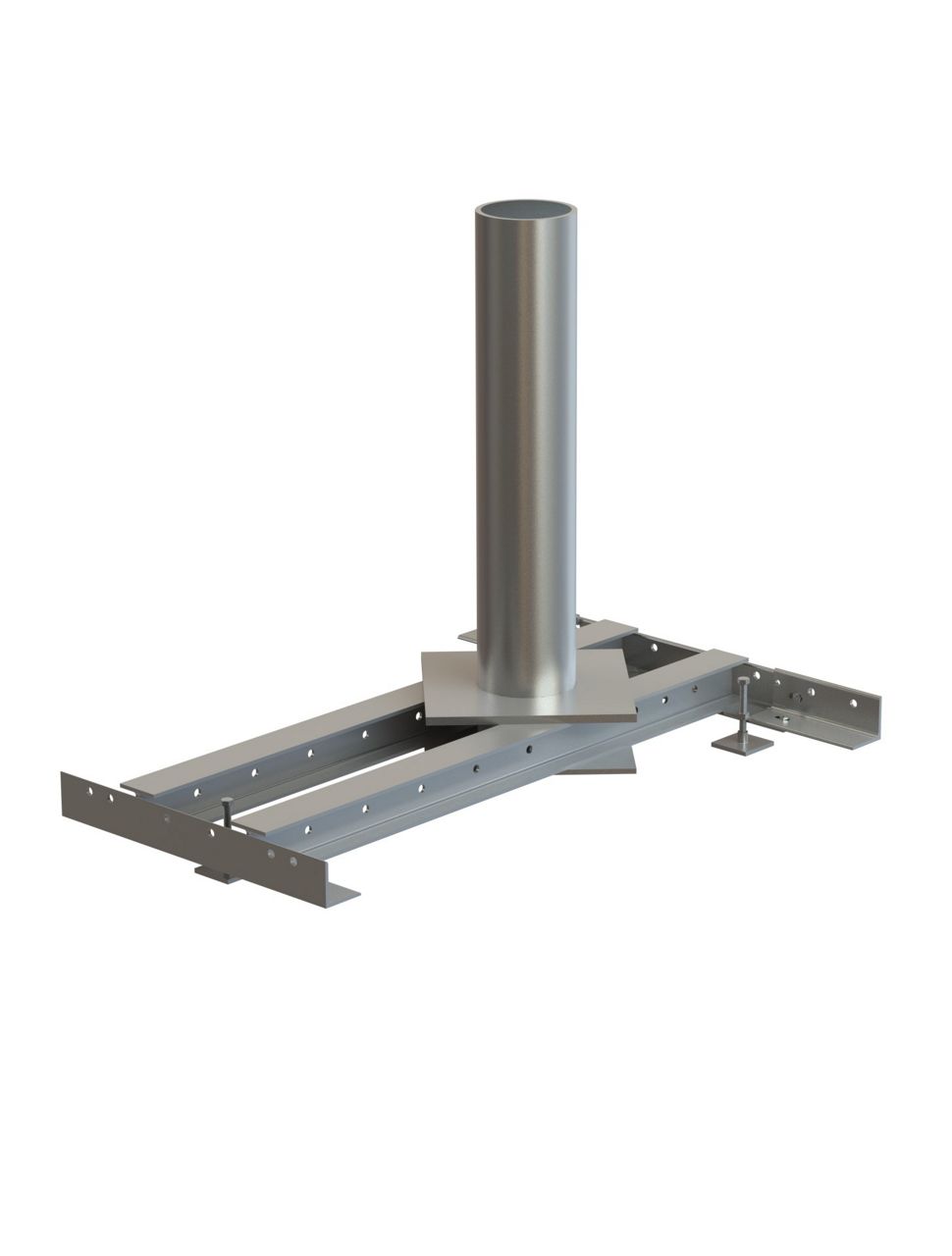

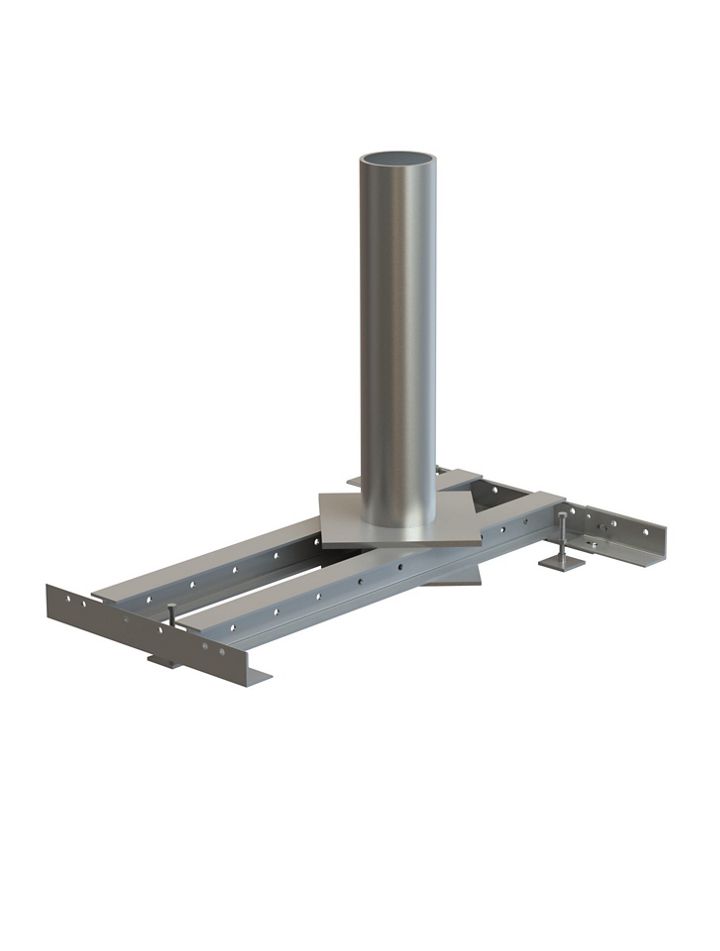

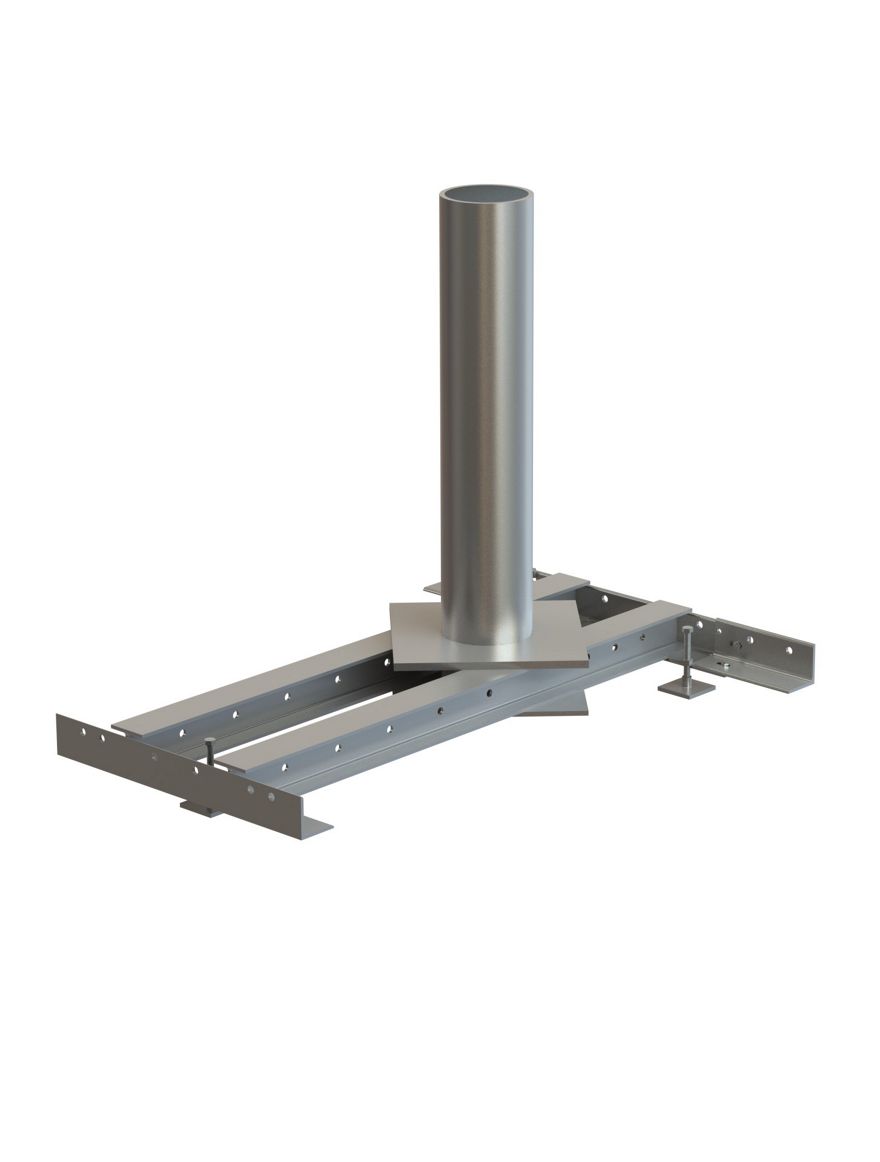

Patented shallow bollard system with a DOS K4 (M30/P1) crash rating (15,000 lbs truck traveling at 30 mph). The system is designed for quick and easy installation with only 9″ of excavation required. The bollard assemblies are individually shipped, and no field assembly is required. The assemblies are provided with unique bollard assembly connectors for easy and flexible installation on sloped and curving road/sidewalk.
Ultra Shallow Mount Installation

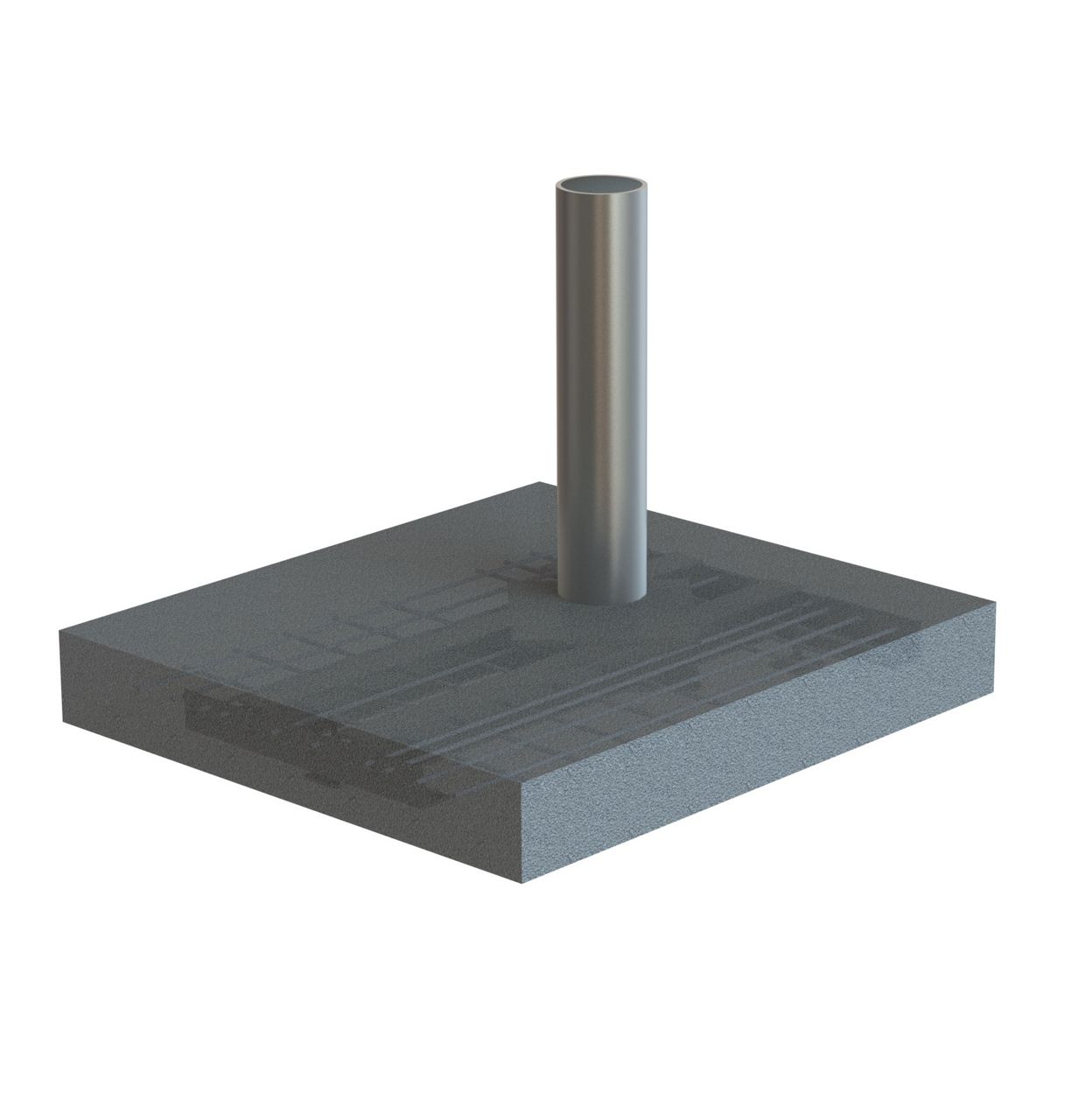

Only 6"-10" of total excavation is required, enabling you to install a crash test certified bollard at a fraction of the depth.
Decorative Sleeves Available
Custom sleeve options and reflective banding available.
Foundation Depth: 9″
Height: 40″
Bollard Diameter: 8.625″
Bollard Spacing (center to center): 40.5″ to 42.5″ field adjustable
Bollard Spacing, Engineered (center to center): 60″
Bollard Spacing (clearance): 32″ to 34" field adjustable
Bollard Spacing, Engineered (clearance): 51.35″
Elevation and Setback Adjustable
Crash Rating
US DOS K4 (15,000 lbs at 30 m/h – 6,800 kg at 50km/h, equivalent to ASTM M30/P1)
Crash Tests as 5 bollard array
