SAFETY Act Certified & Designated
This product has been given the highest level of liability protection by the U.S. Department of Homeland Security.
Ultra Shallow Series
- Airport
Fixed or Removable | M50, PAS 68 (M40) & K4 (M30) | Ultra Shallow Mount
Ameristar's Ultra Shallow bollards are quick and easy to install crash-rated bollards that provide superb protection against vehicular threats. All configurations in the series require between 6"-10" of total excavation, enabling you to install a crash test certified security product at a fraction of the depth required by traditional products.
Ameristar's Ultra Shallow Series is available in 3 crash test certified configurations. The first is crash test cerified as M50/P1 (aka Gladiator) which is a K12/L3 equivalent rating. The second is crash test certified as PAS 68 (aka the SP1000) and is equivalent to a M40/P2 or K8 rating. The final configuration is crash test certified to K4/L3 (aka the SMB) which is equivalent to a M30/P1 rating.
Read about the Ultra Shallow Bollard installation and crash at LAX terminals!

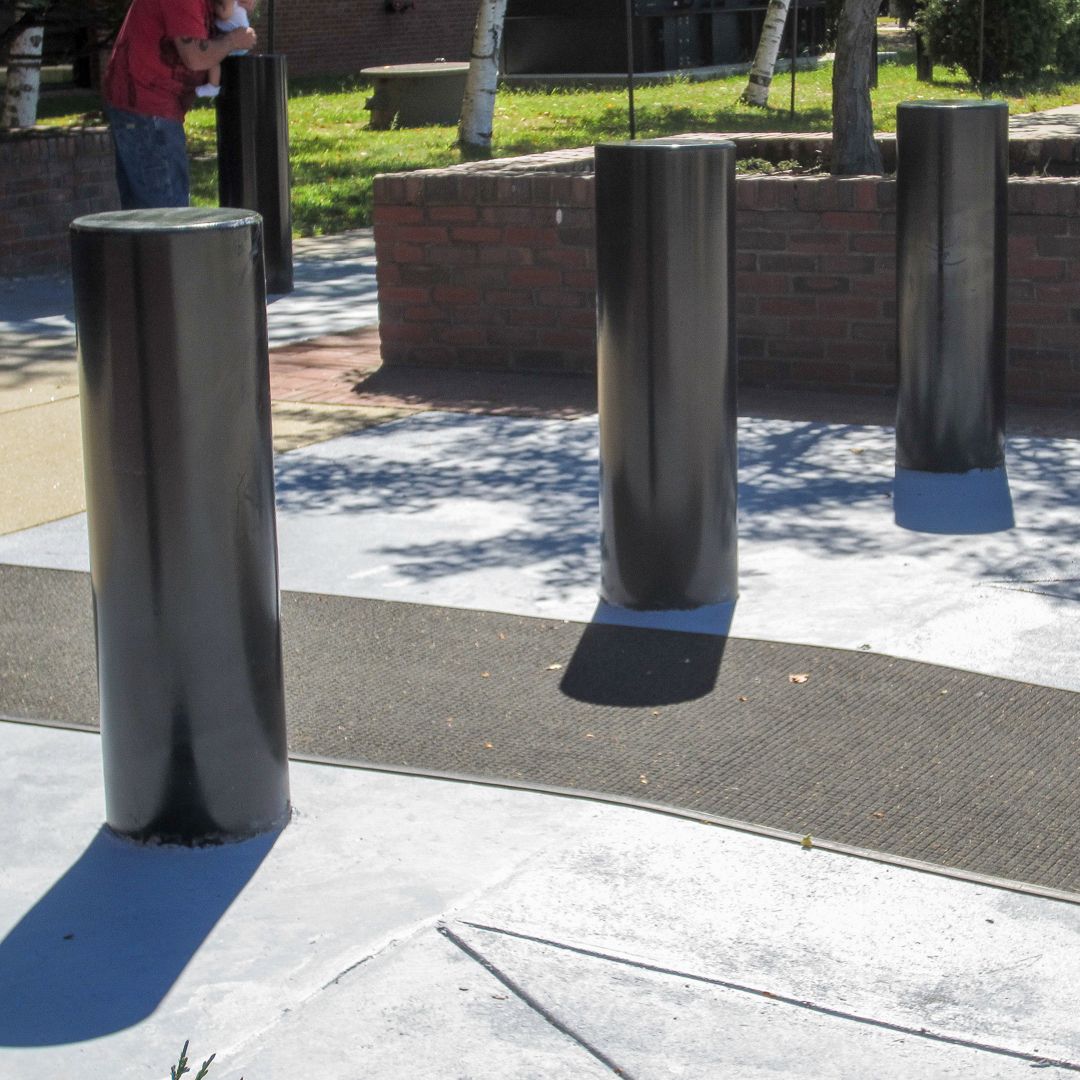

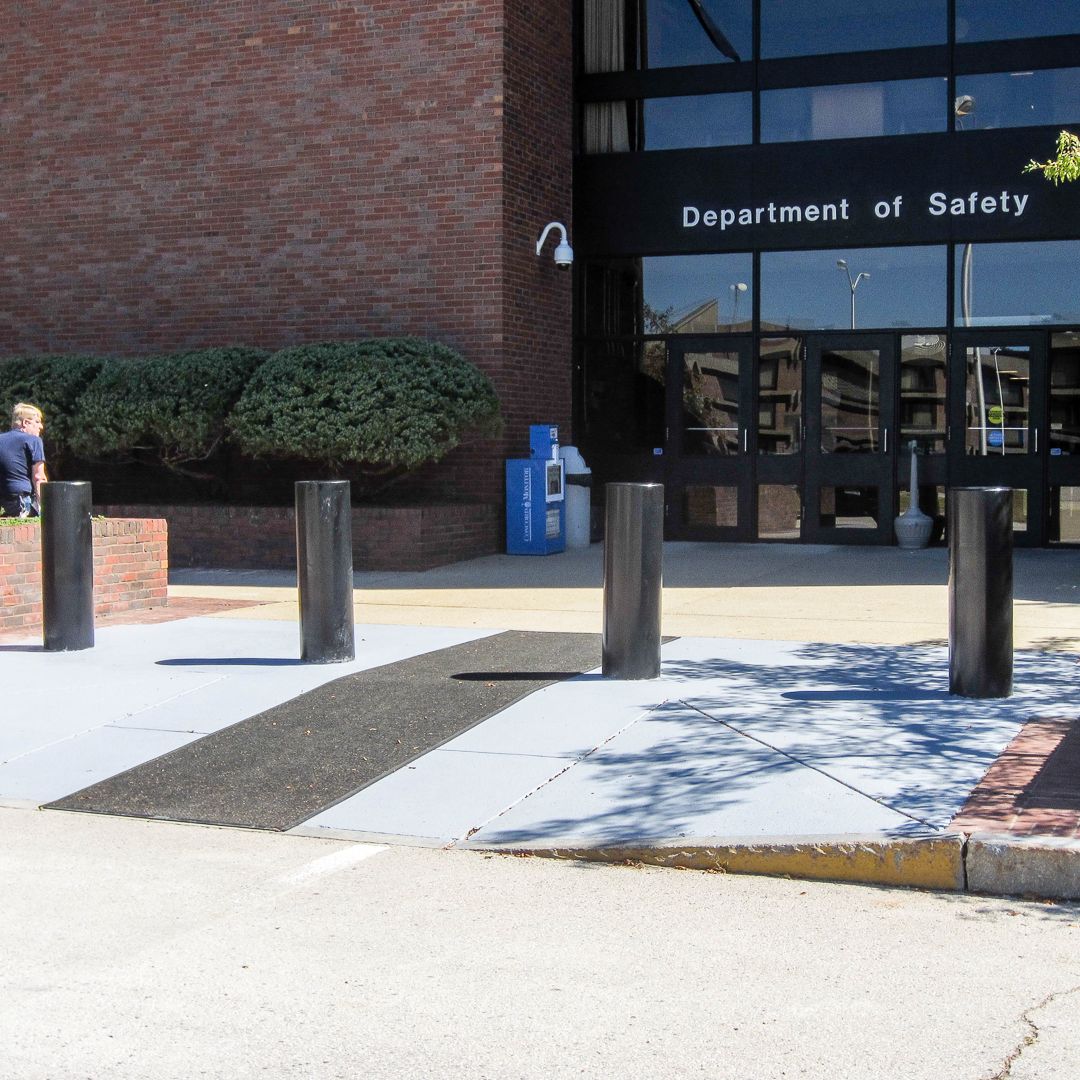

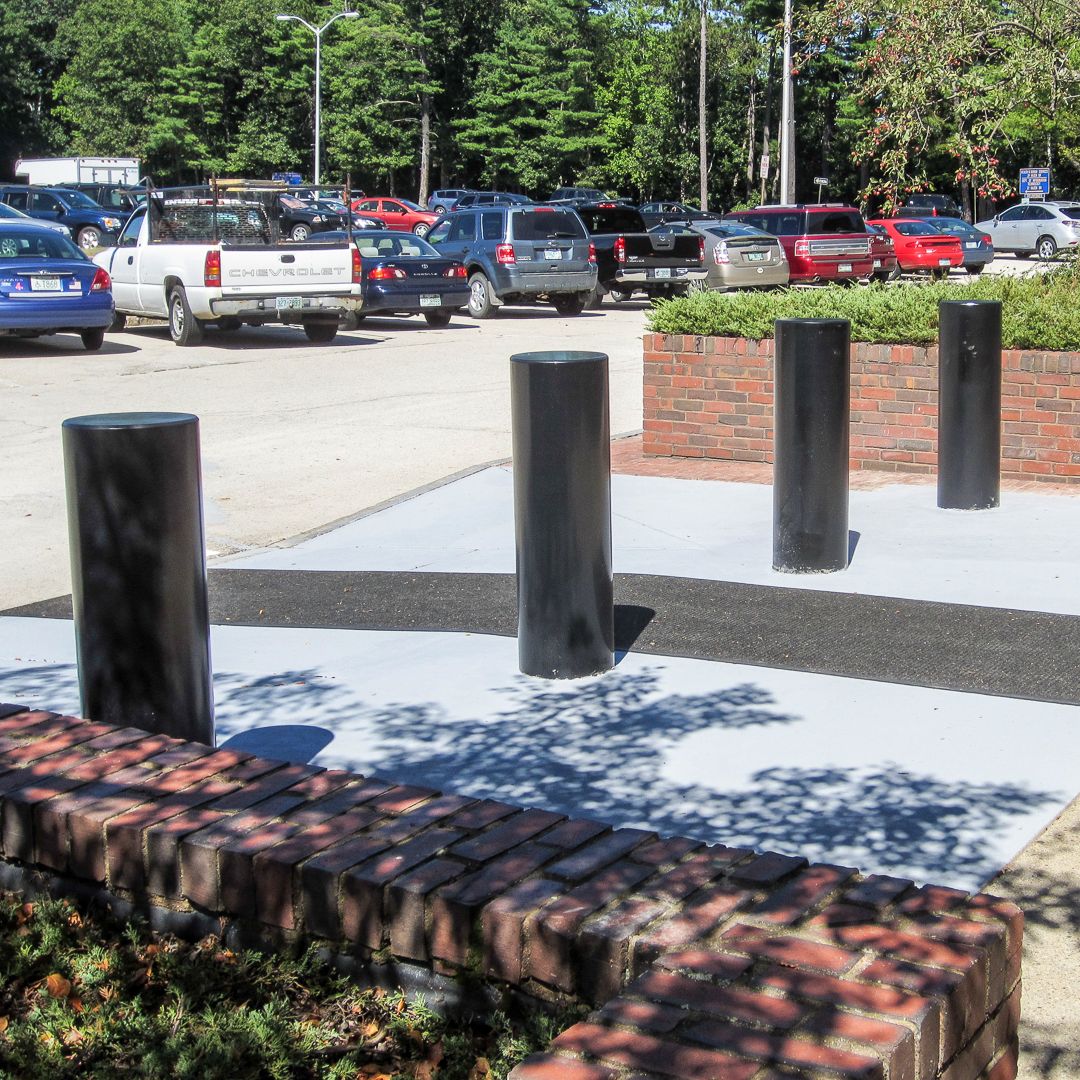

Black

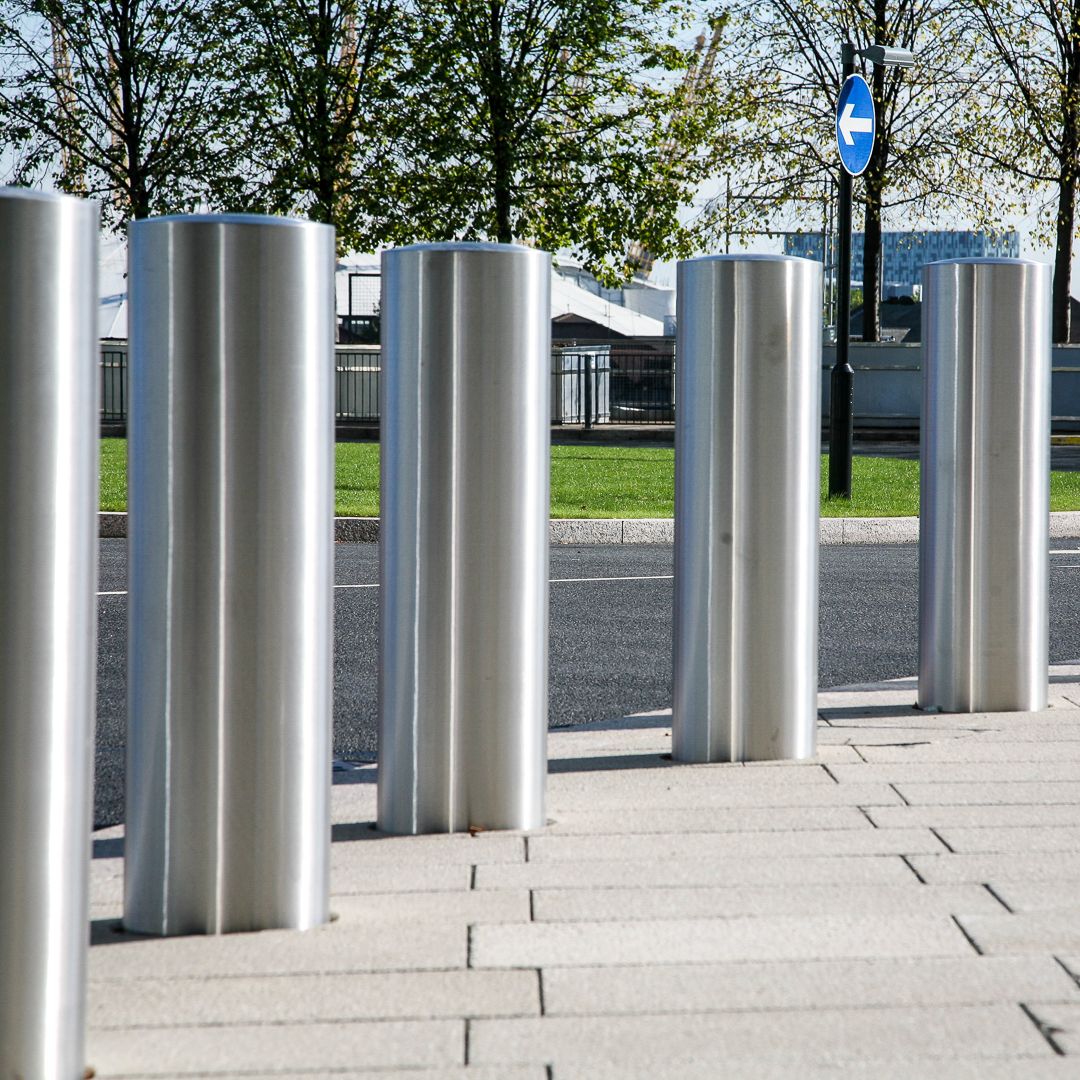

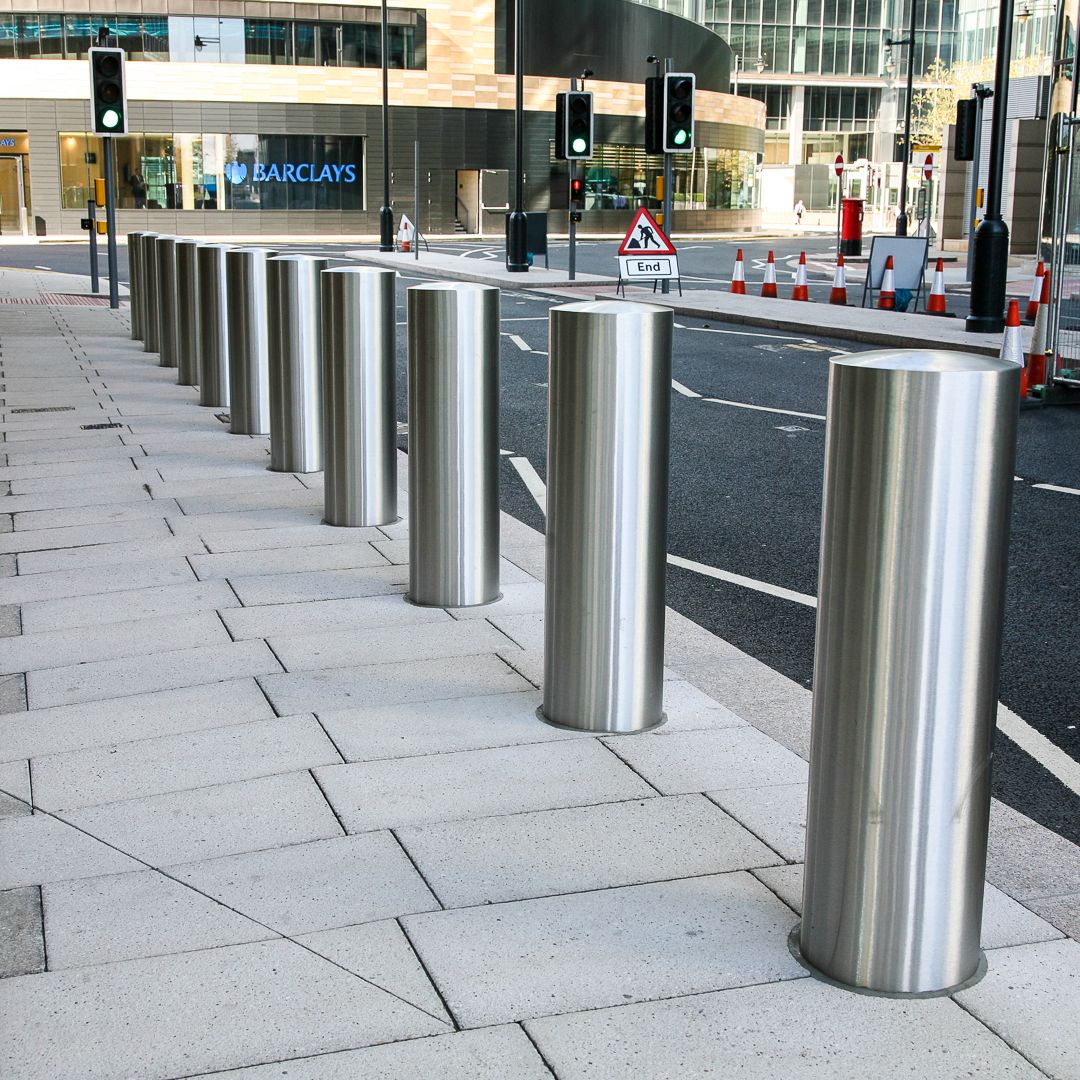

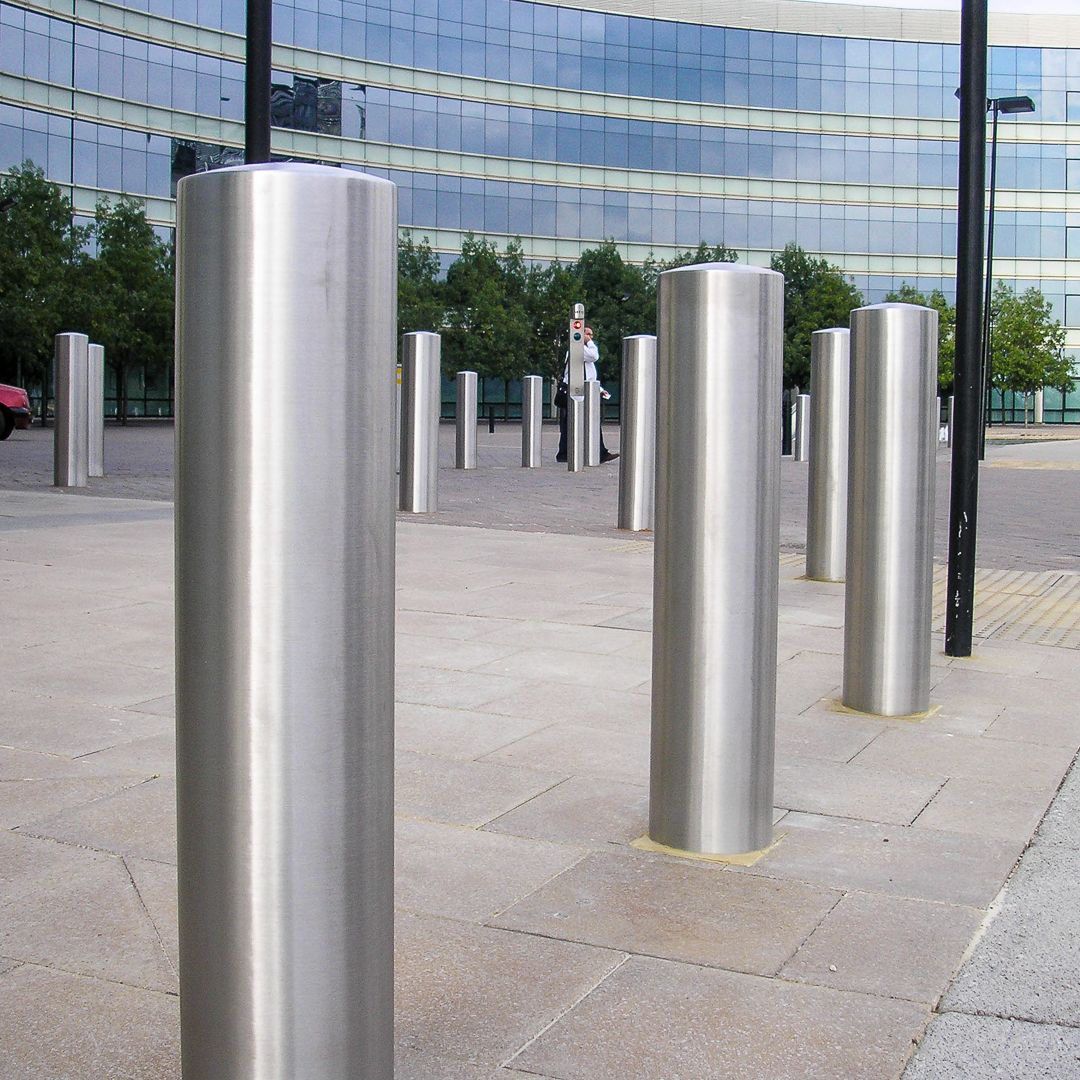

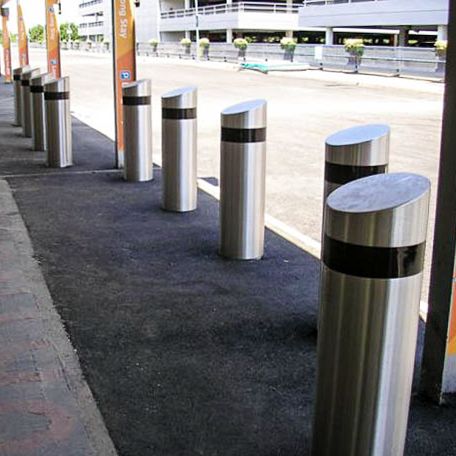

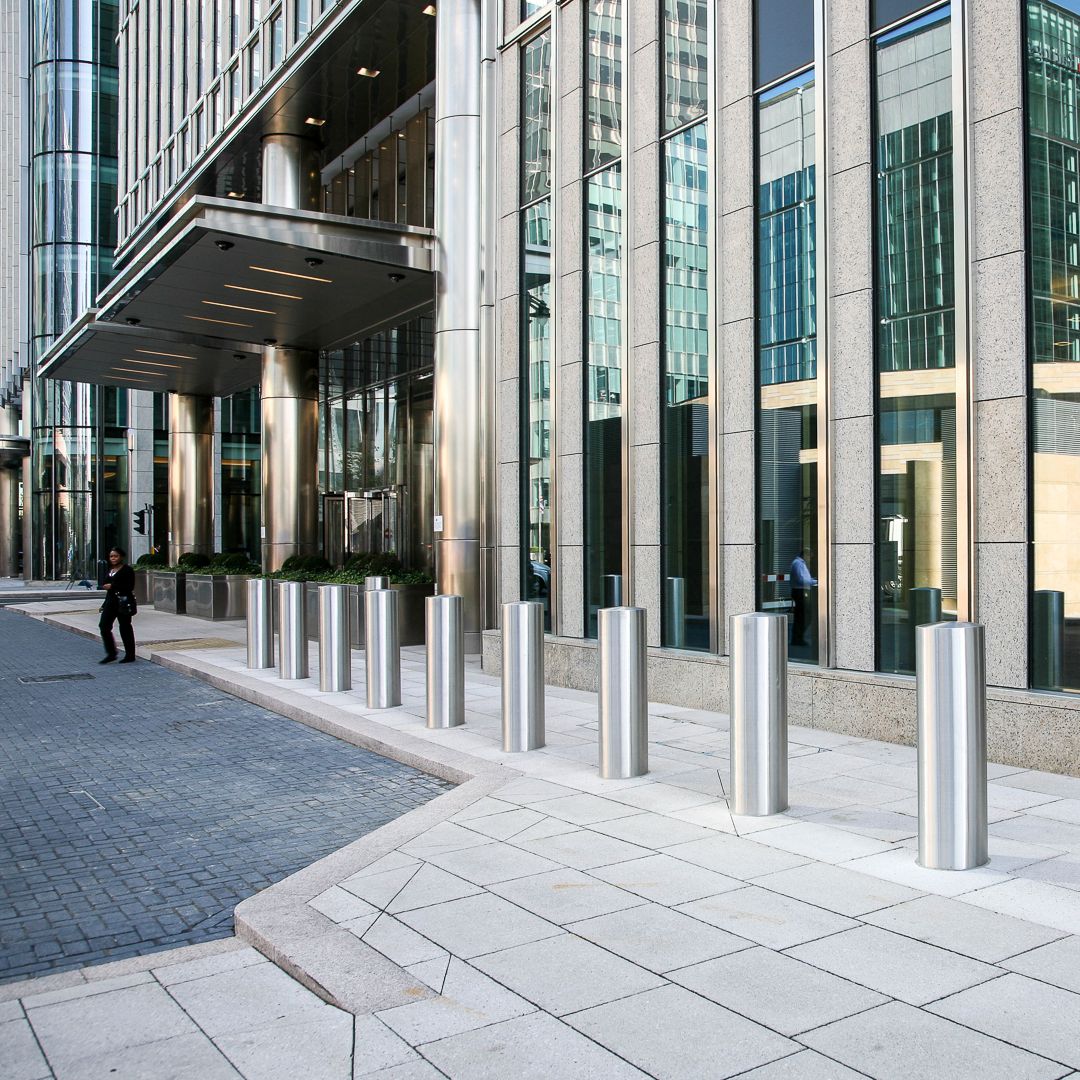

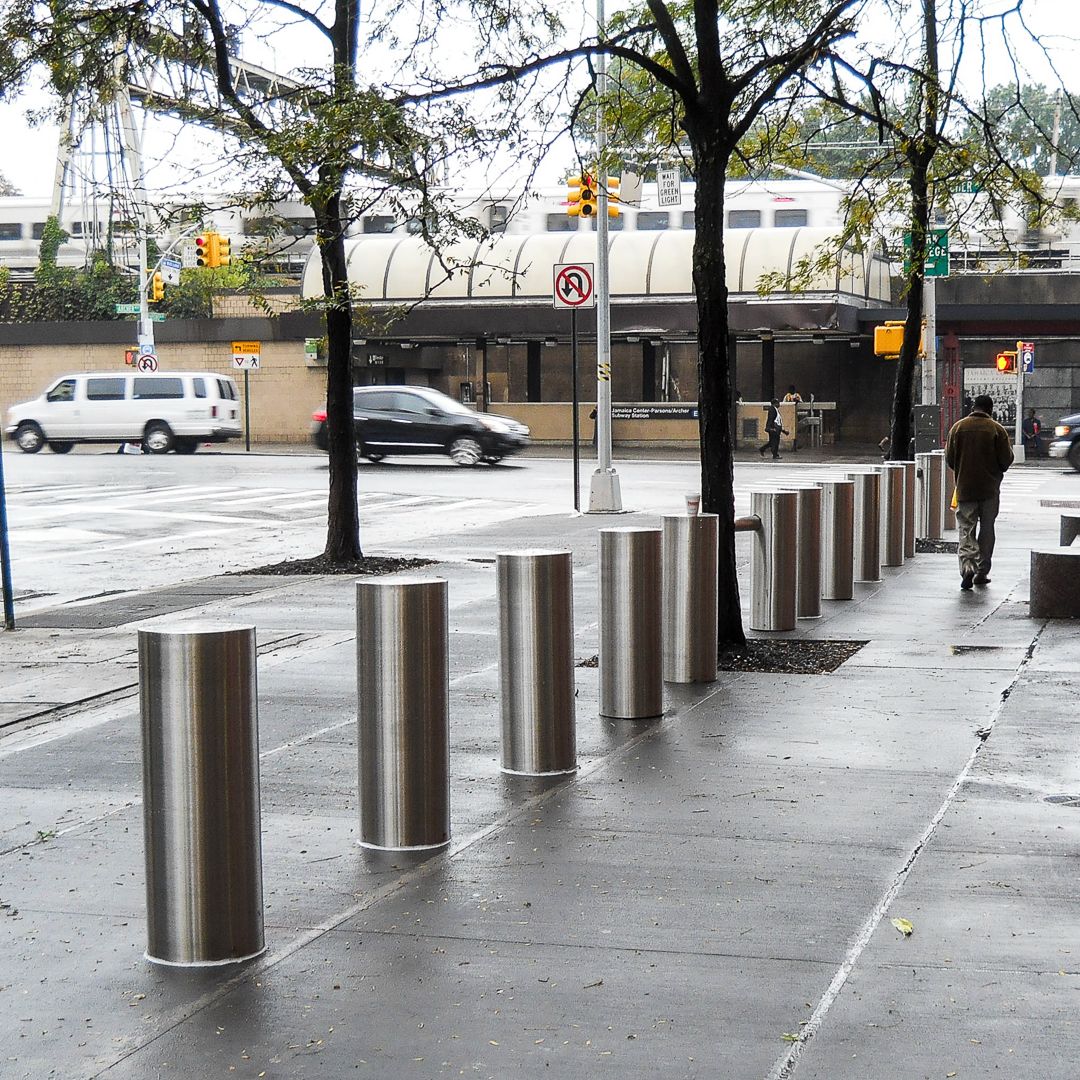

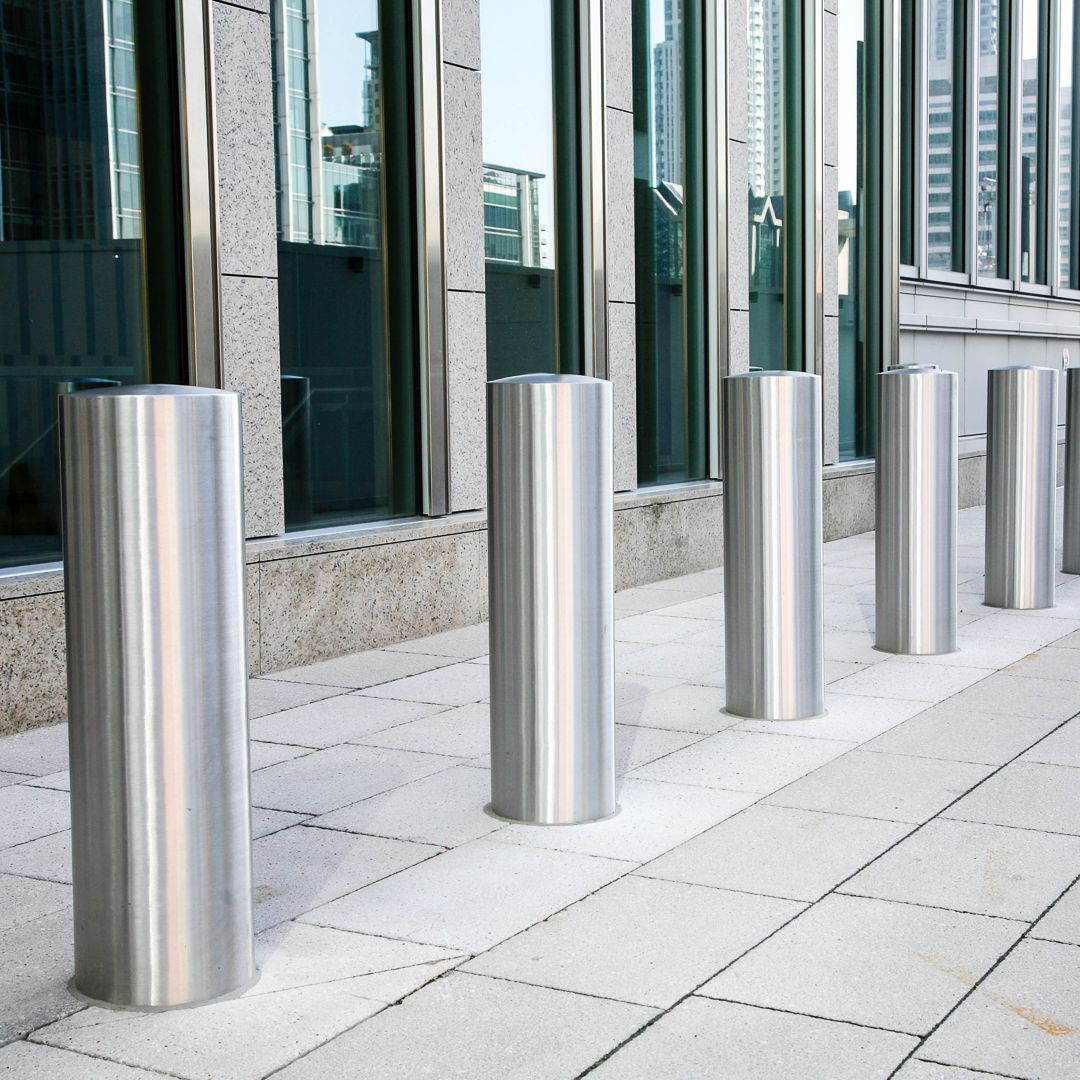

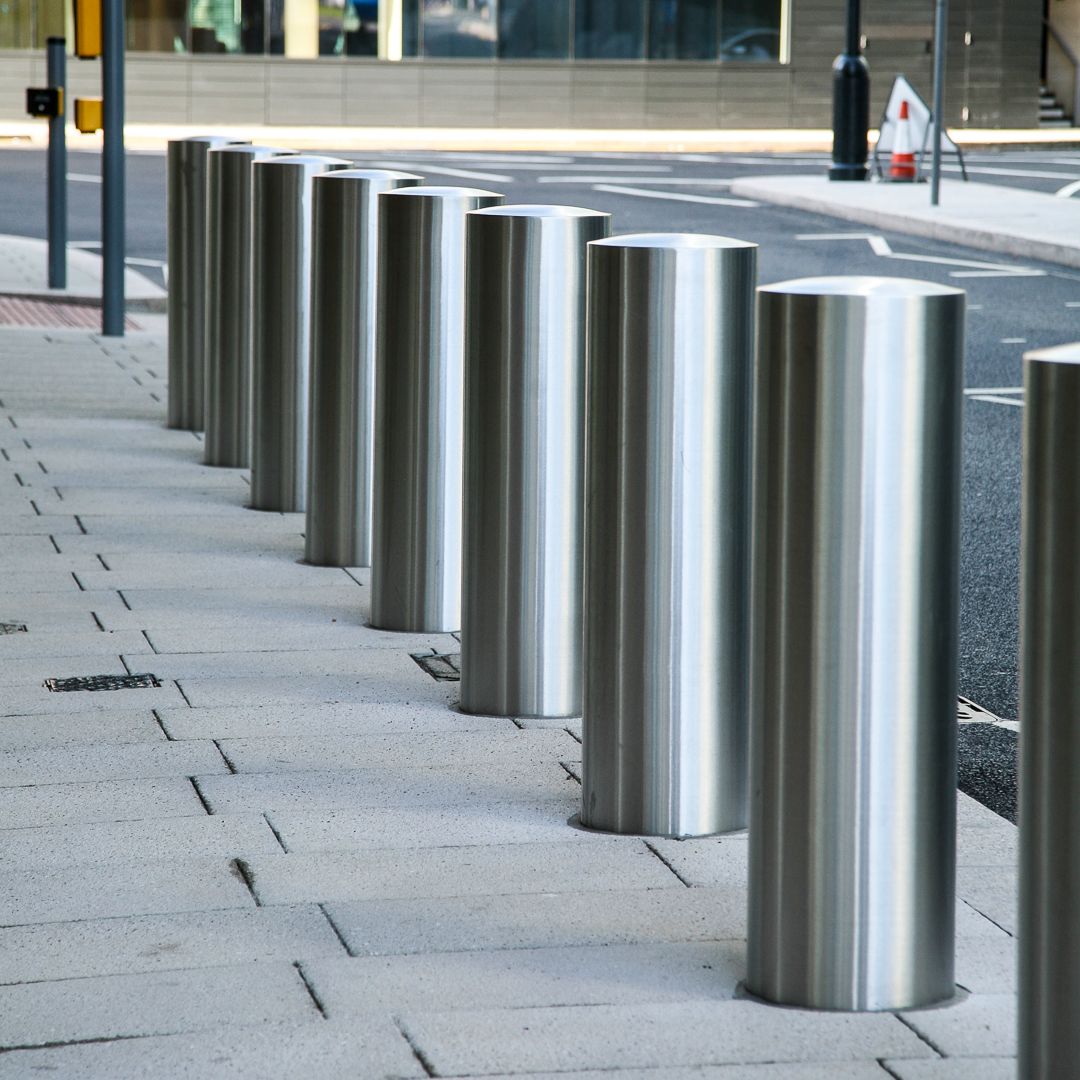

Stainless Steel
Ultra Shallow Mount Installation
Only 6"-10" of total excavation is required, enabling you to install a crash test certified bollard at a fraction of the depth.
Fixed or Removable Option
Our fixed bollards are also available in a removable configuration in case infrequent access to an area is required.

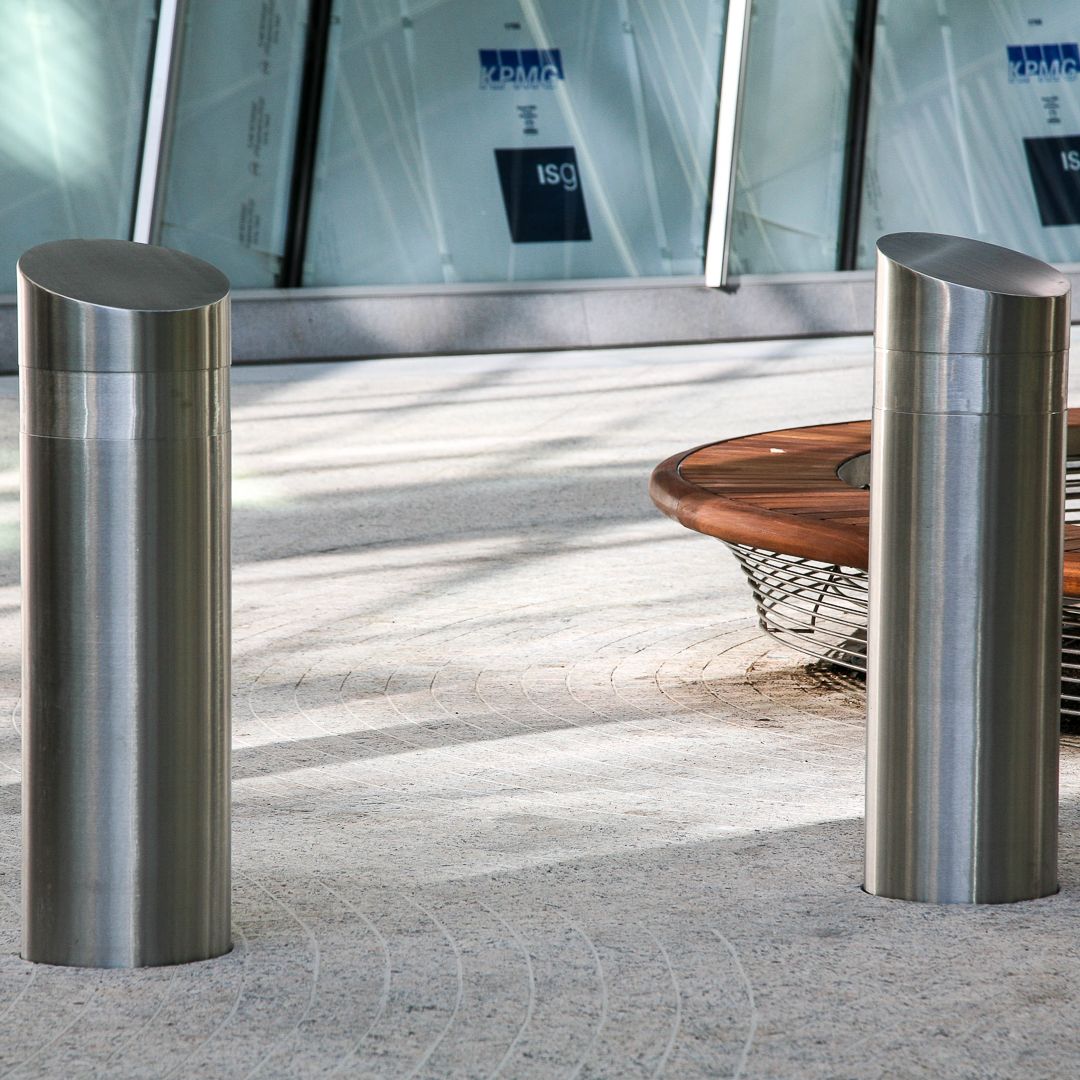

Decorative Sleeves Available

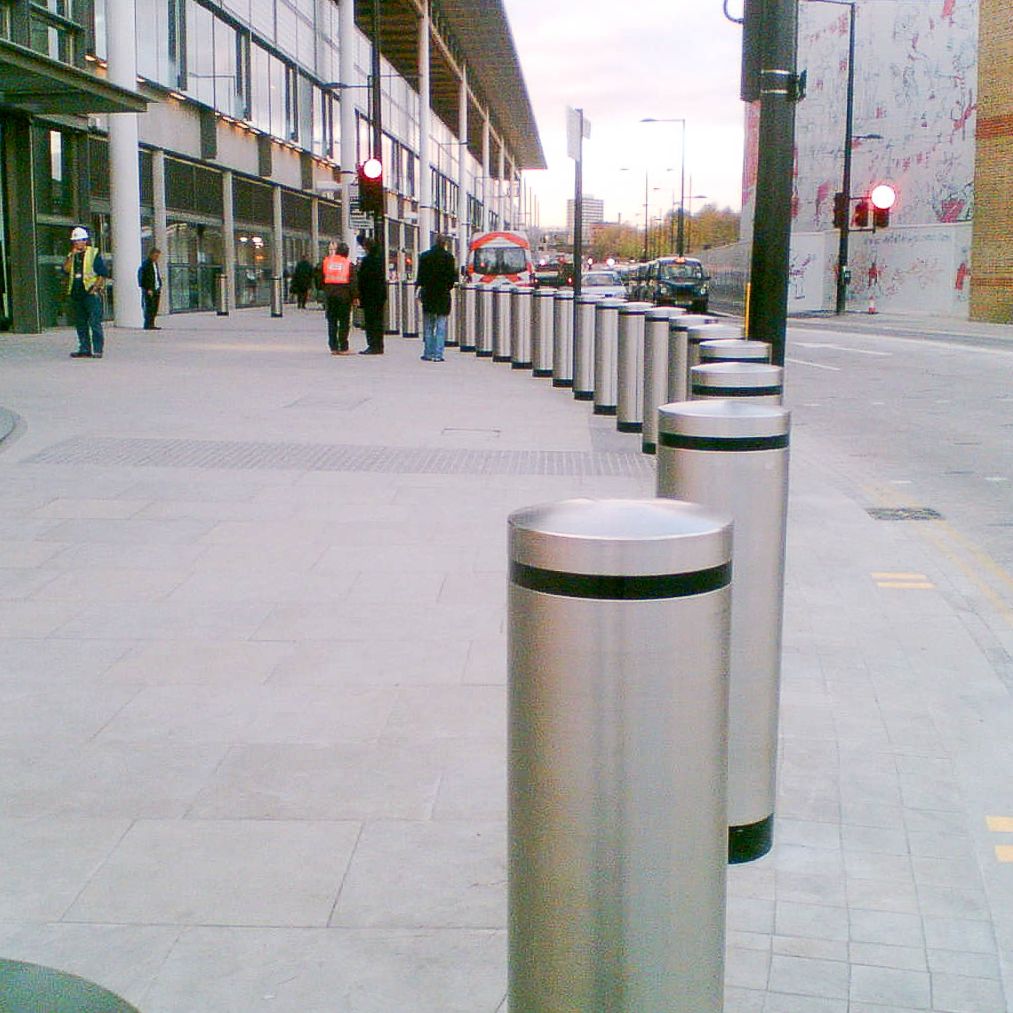

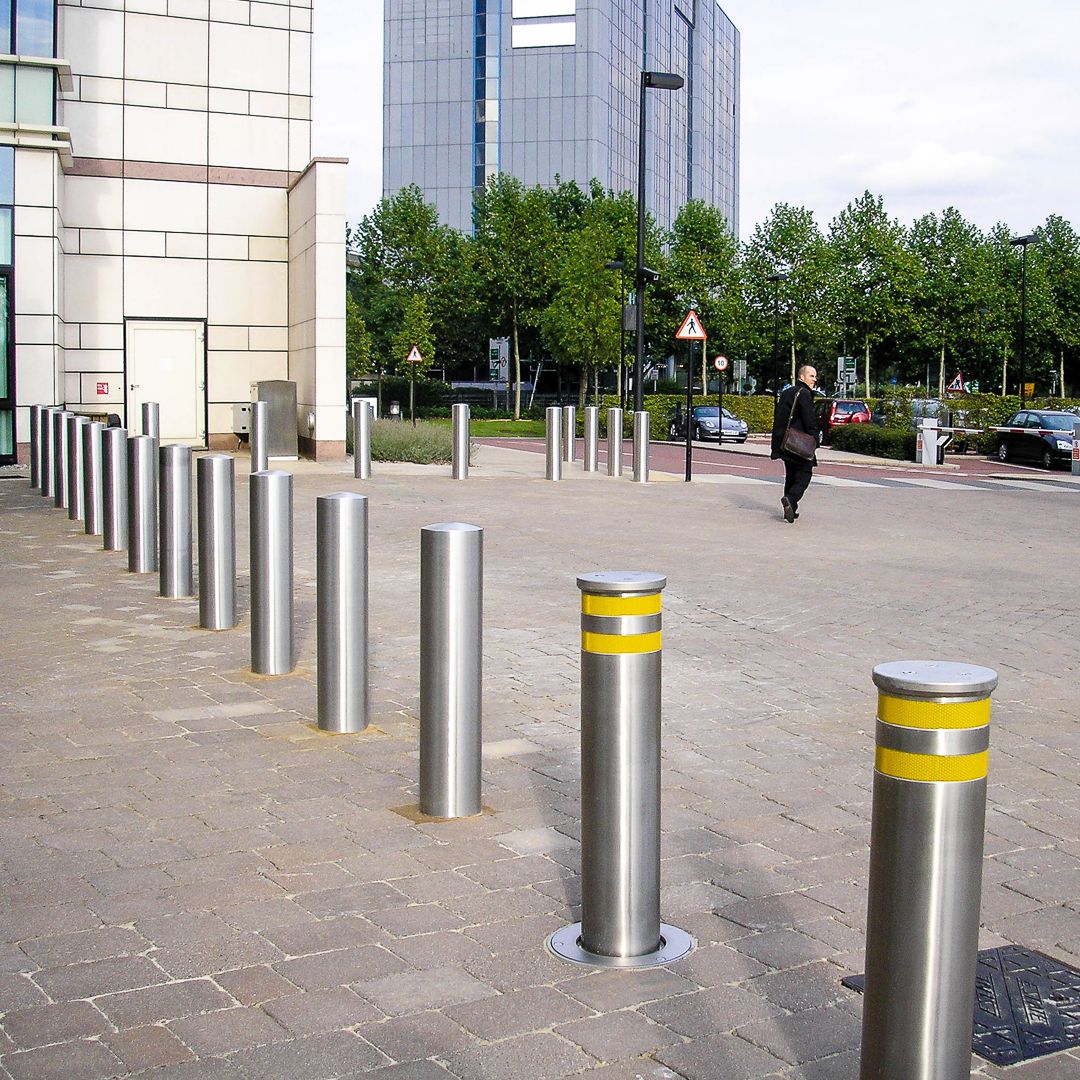

Custom sleeve options and reflective banding available.
M50/P1 Crash Test Certified - Gladiator
48” Height | 12" Diameter
10” Bury | 121" x 273" Foundation
F2656-15 Certified Array of 5
PAS 68: V/7500(N2)/64/90:0.1/0.0 Crash Test Certified (M40/P2 equivalent) - SP1000
41” Height | 12" Diameter
6” Bury | 74" x 192" Foundation
Certified Array of 3
K4 Crash Test Certified (M30/P1 equivalent) - SMB
43” Height | 12" Diameter
8” Bury | 98.5" x 215.4" Foundation
F2656-15 Certified Array of 3
Standard Colors
- Black powder coat
- Stainless Steel
Custom Design Options
- Custom painted
- Decorative sleeve
- Reflective banding
